Chemo-responsive

Water, ethanol, acetone

Water-responsive
Water-driven programmable polyurethane shape memory polymer: demonstration and mechanism, Applied Physics Letters, Vol.86, 2005, pp114105

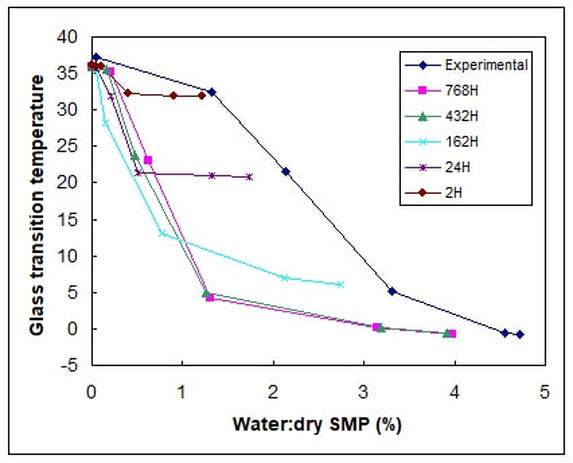

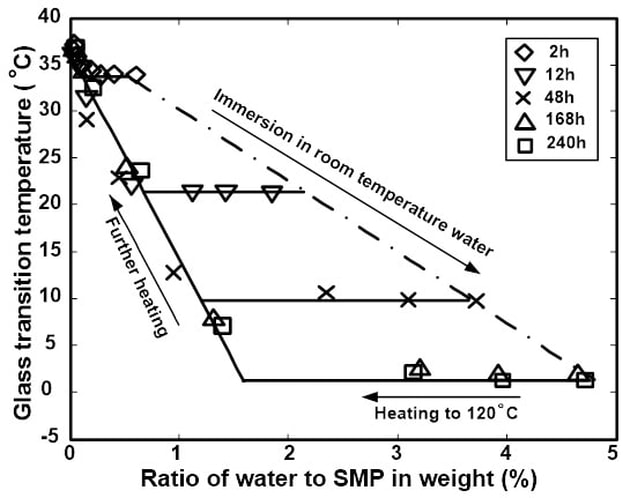

Steps to find the relationship between two types of water and Tg:
1. Original plot
2. Sketch
3. Final

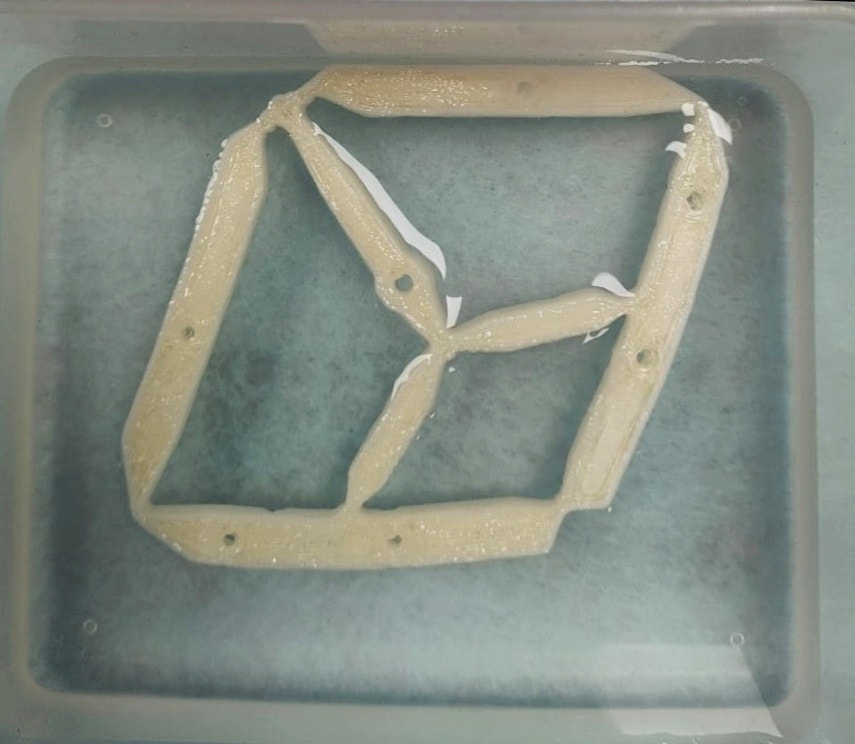

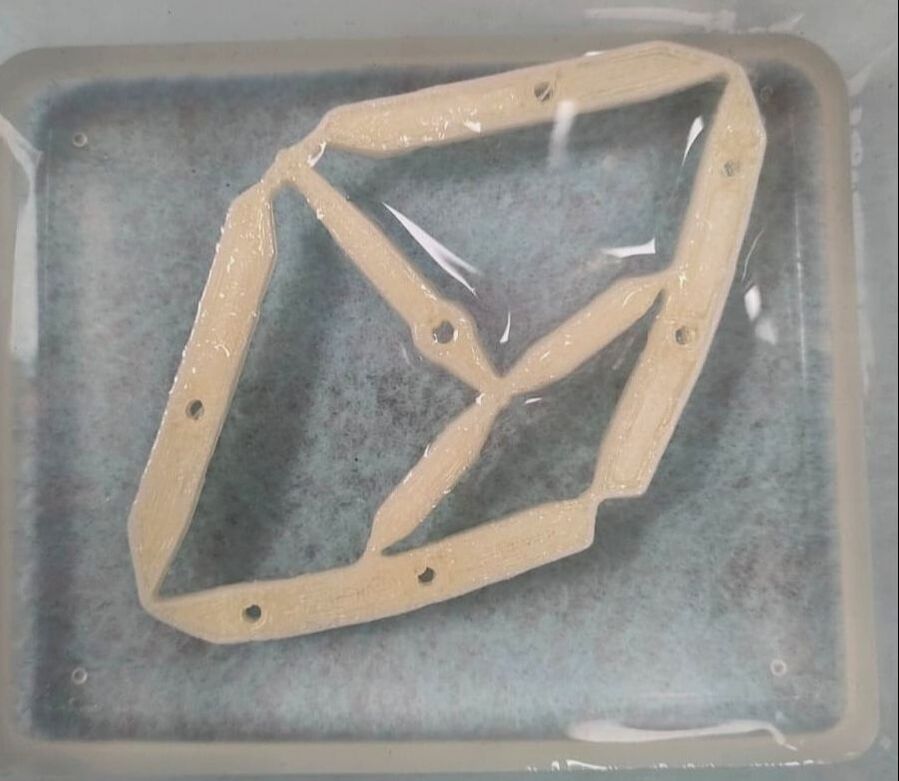

FDM printed (PVA) in room temperature water


Ng JY (FYP)
@3.46 Pm
@3.55 Pm

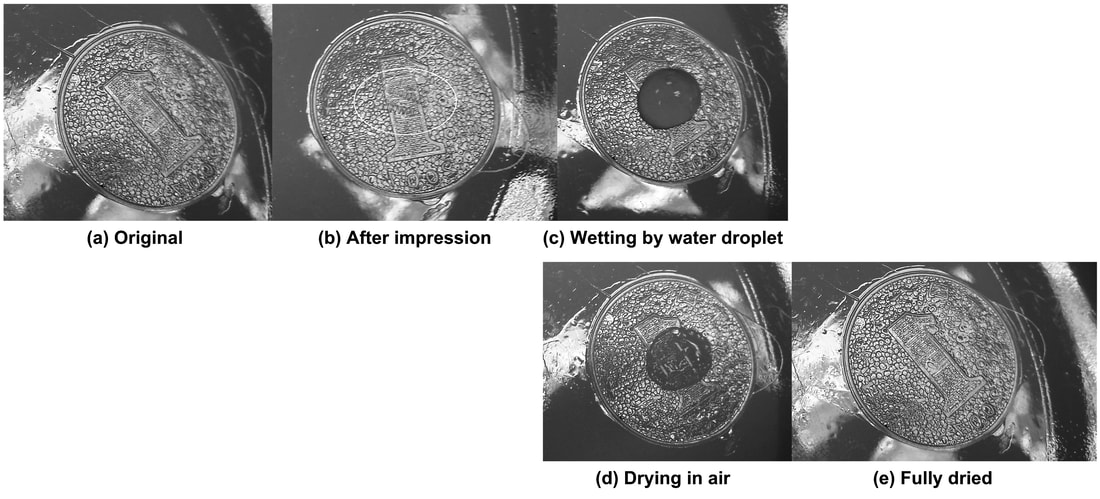

Gelatine

In room temperature water, slow recovery
After two days in room temperature water

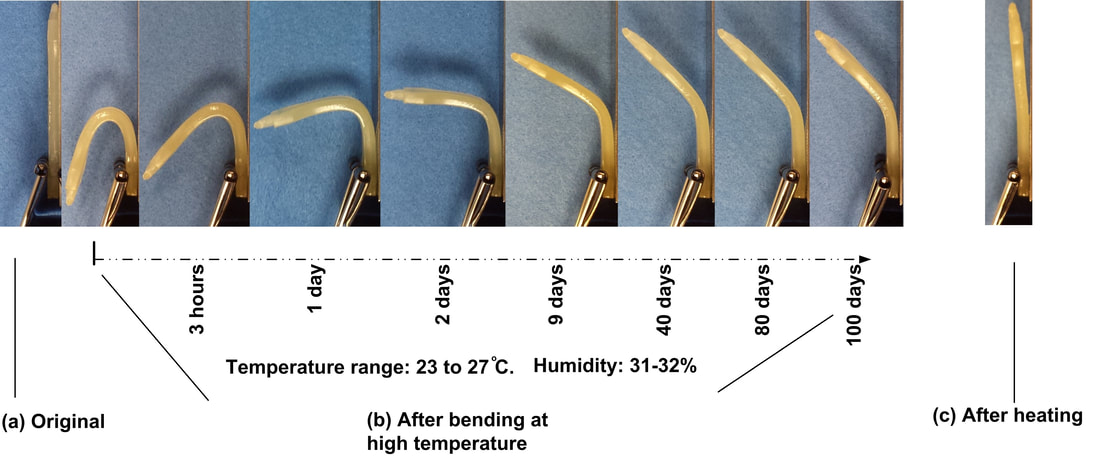

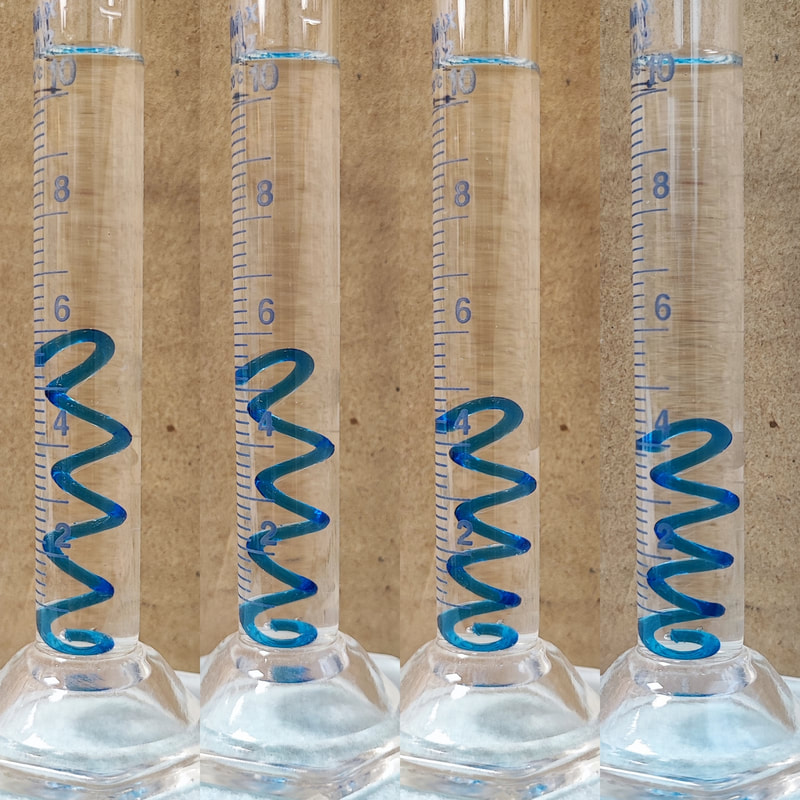

Polyurethane 3520



Cellulose

Learn more

Water-responsive SME in paper


Ethanol-responsive
(Visiting PhD student): Fang FY

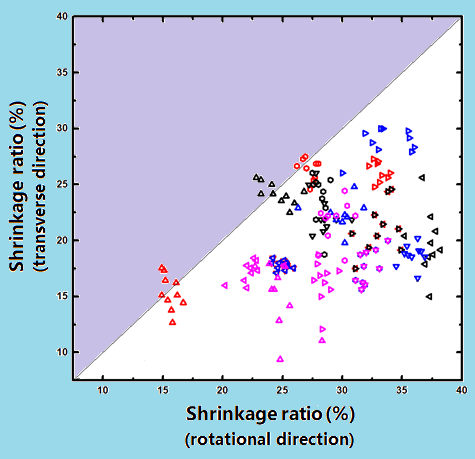

Stimulus-Responsive Shrinkage in Electrospun Membranes: Fundamentals and Control. Micromachines 2021, 12, 920.

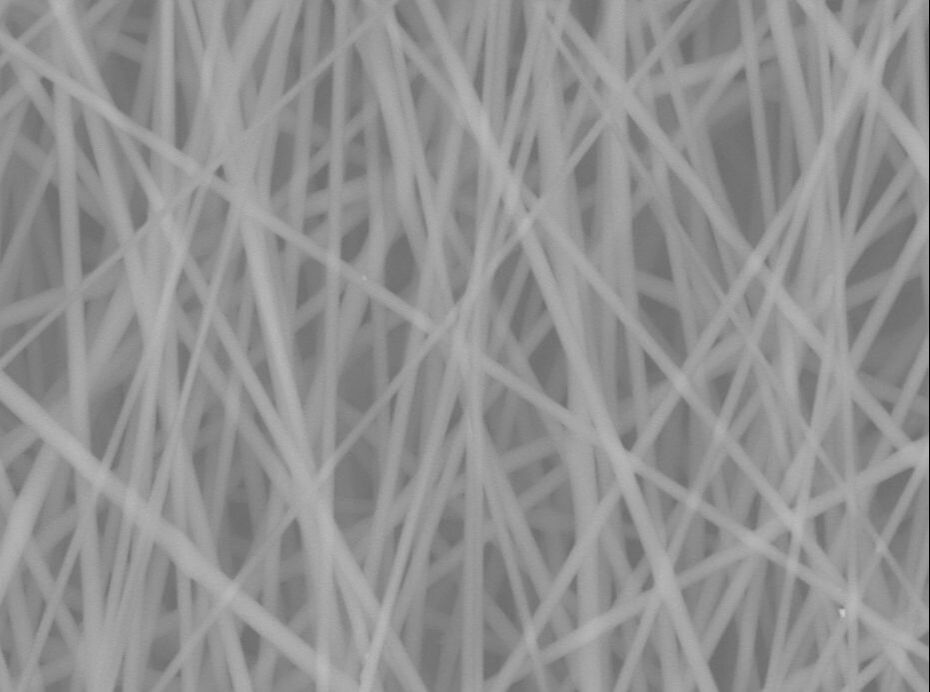

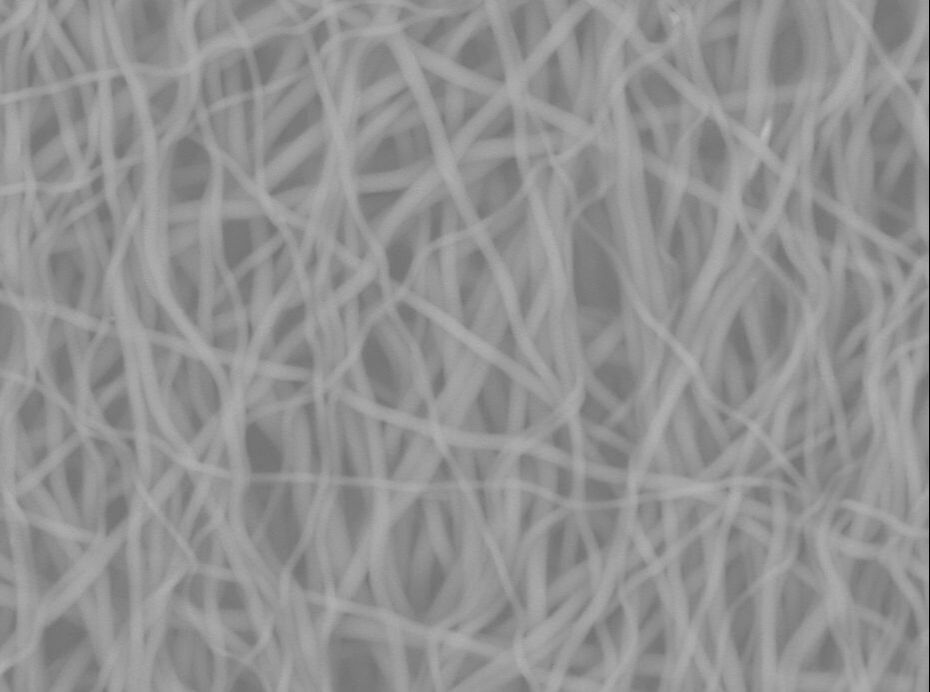

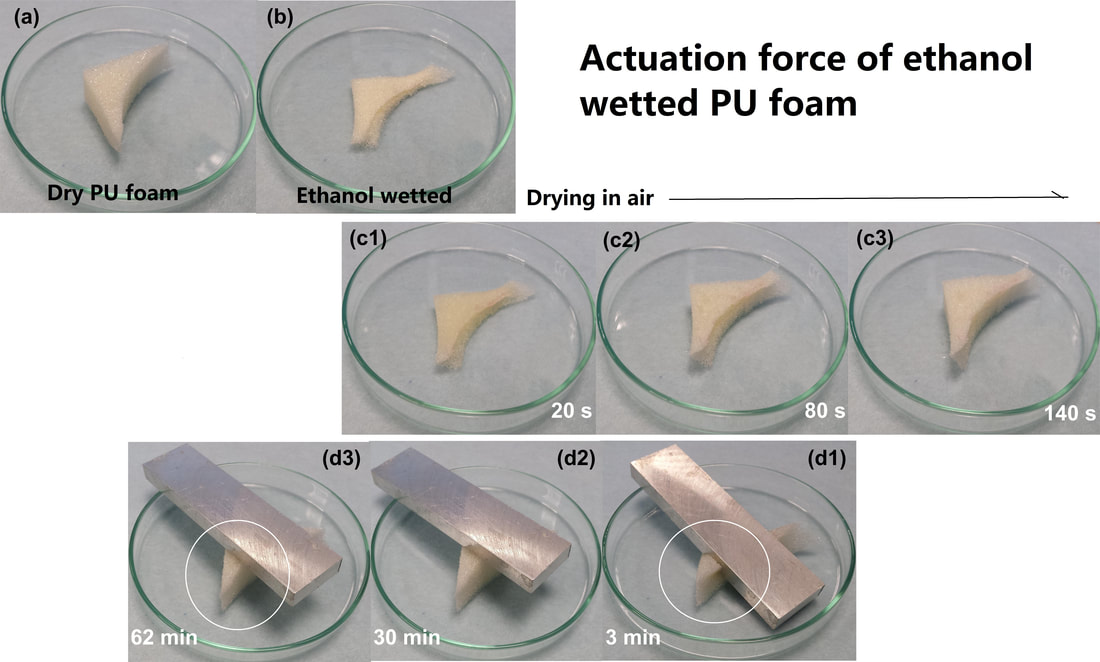

Electrospun PU before and after wetting by ethanol

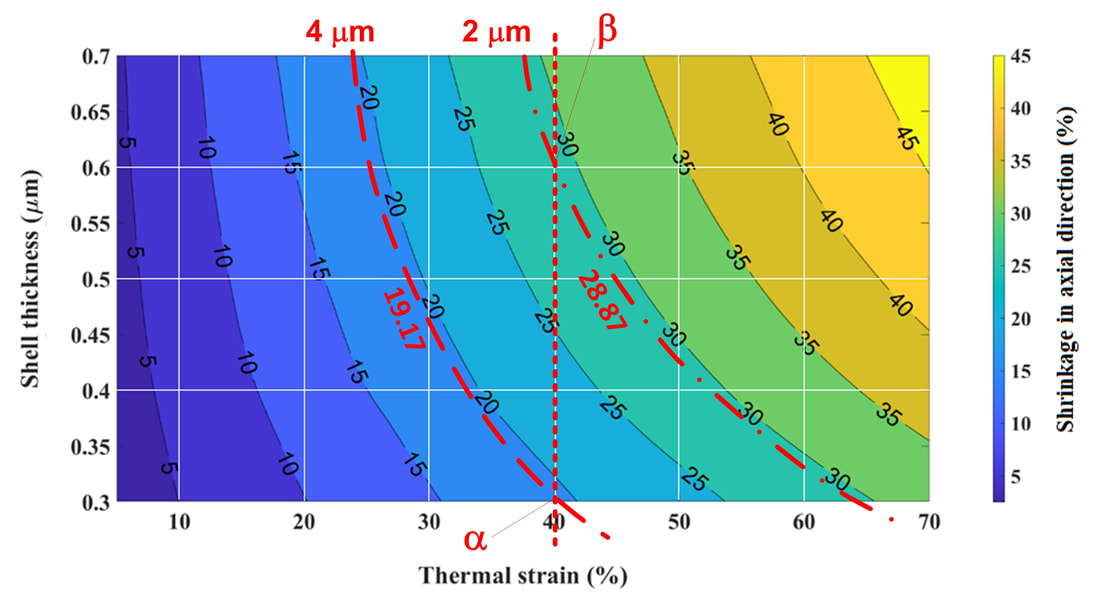

How to estimate the thickness and prestrain in the prestretched shell ?


Application in self-tightening band aid

(FYP) Ng JH


Intern: Durai Aadithiya
​由静电纺丝技术制备聚氨酯及其应用

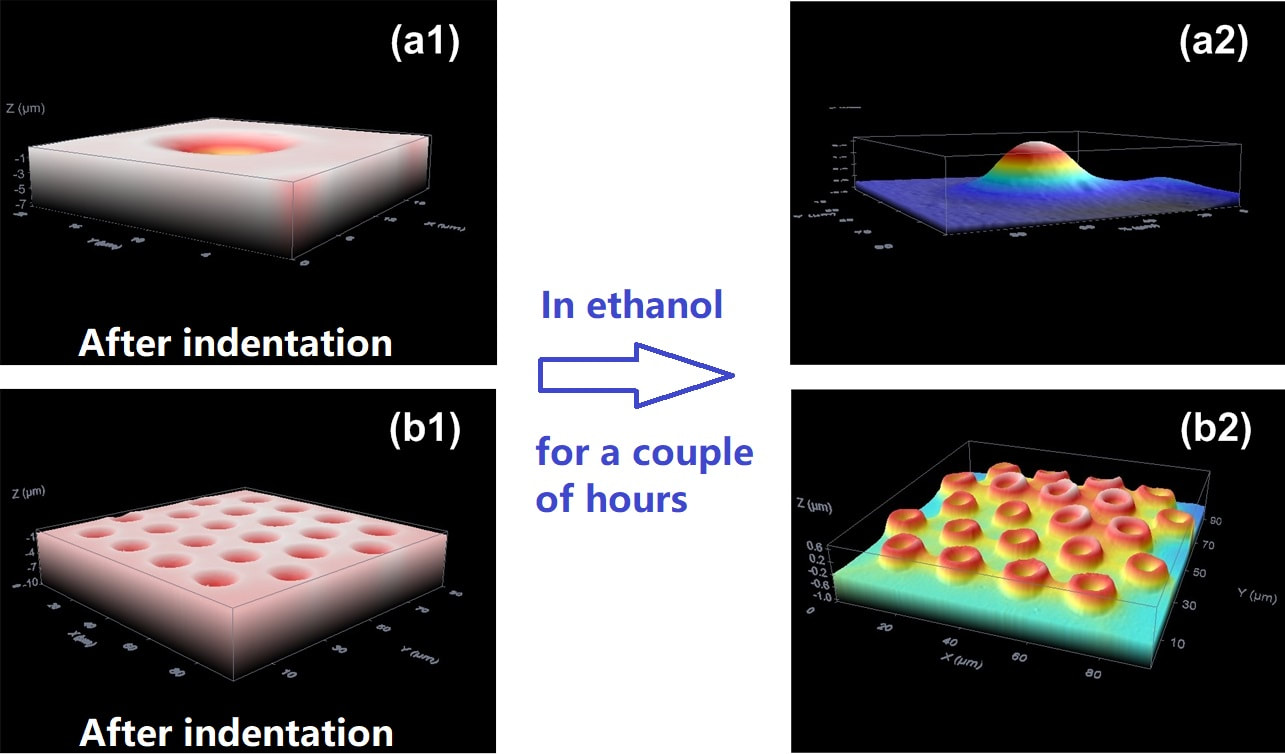

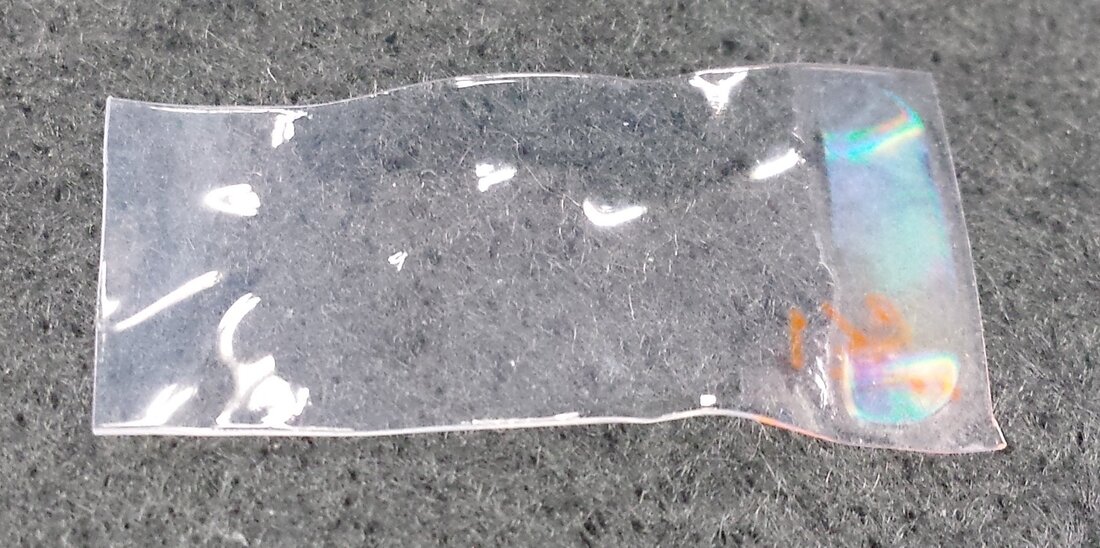

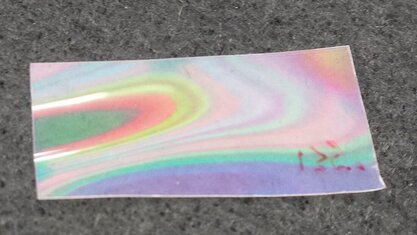

Nano-imprinted (roll to roll, PMMA)

 As fabricated (structural coloring)
Partially wetted by ethanol (rainbow gone)

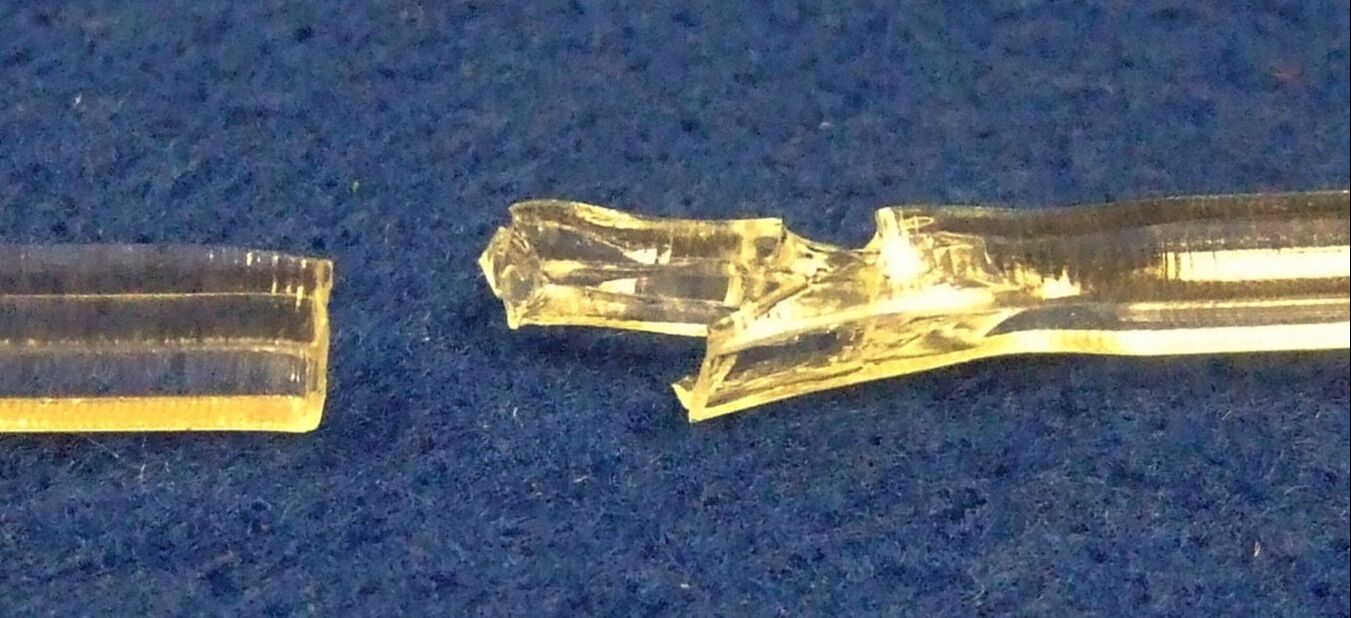

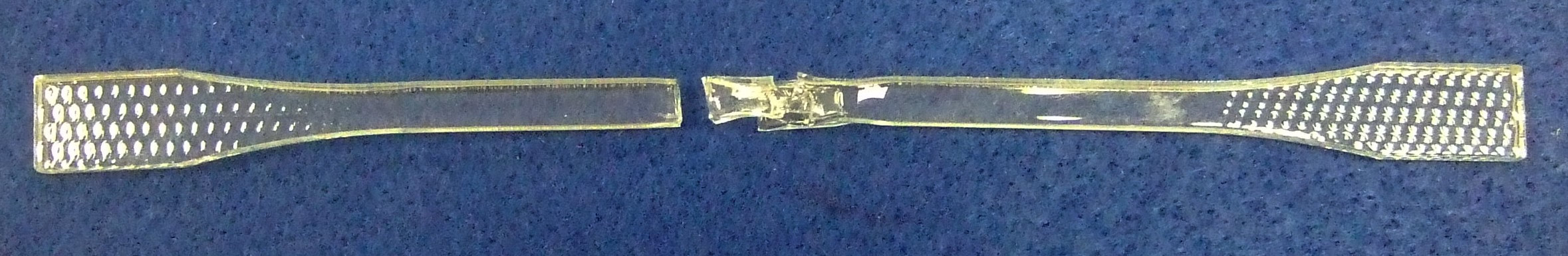

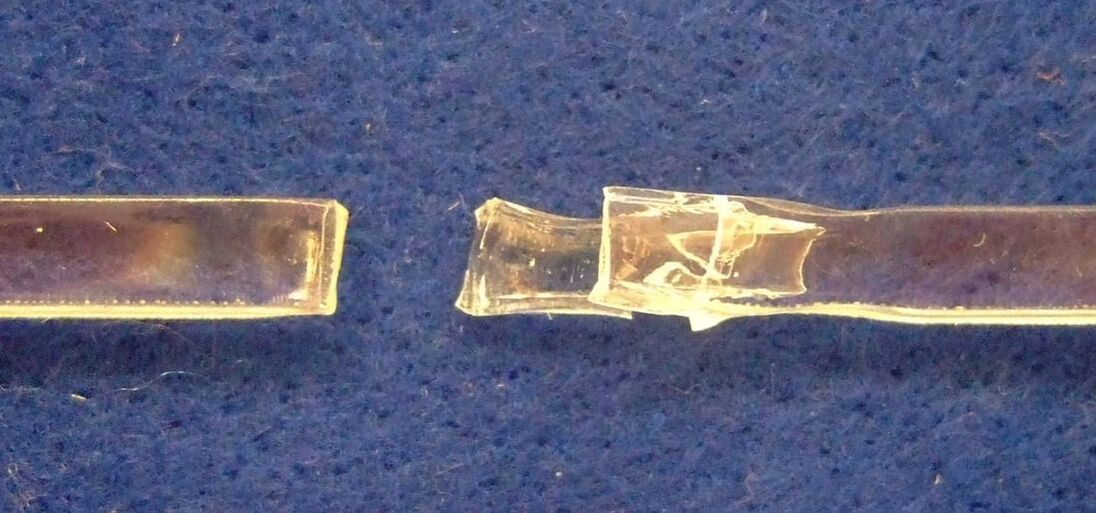

High temperature prestretched PMMA in ethanol for 20 days

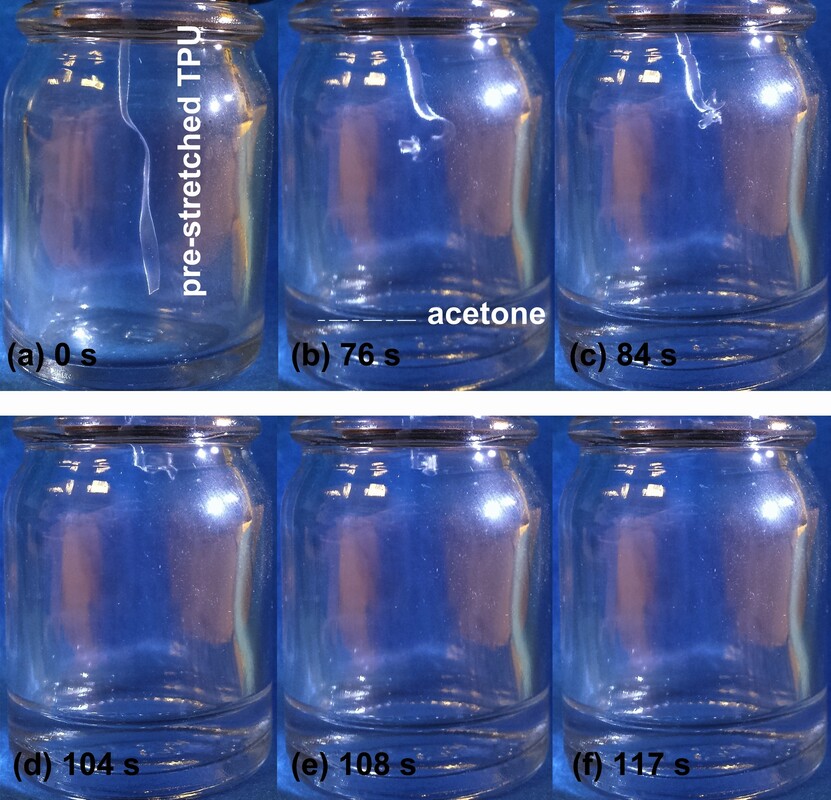

Acetone

Alcohol activated self-tightening band aid

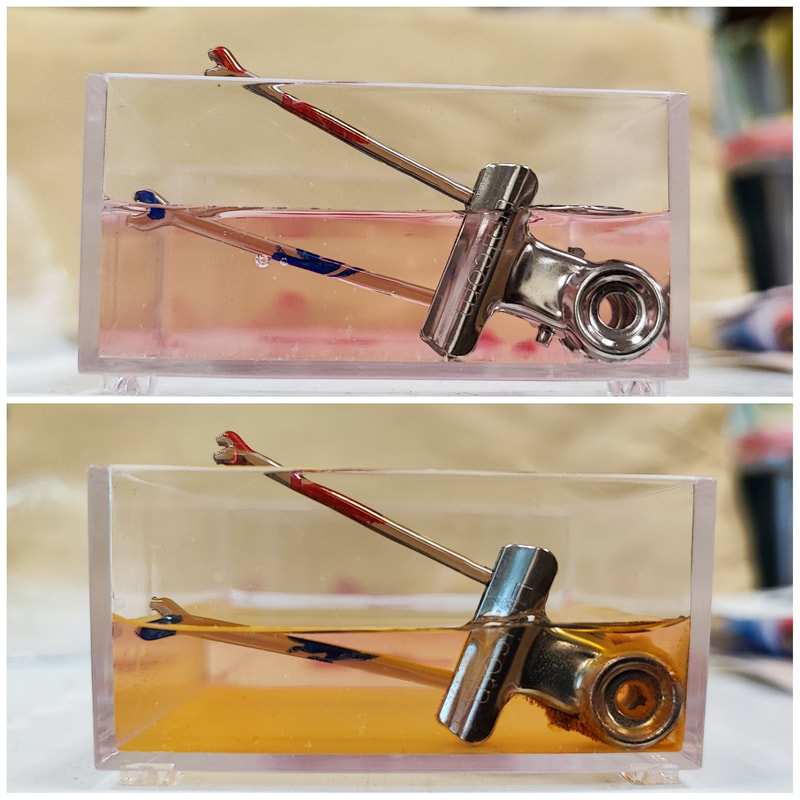

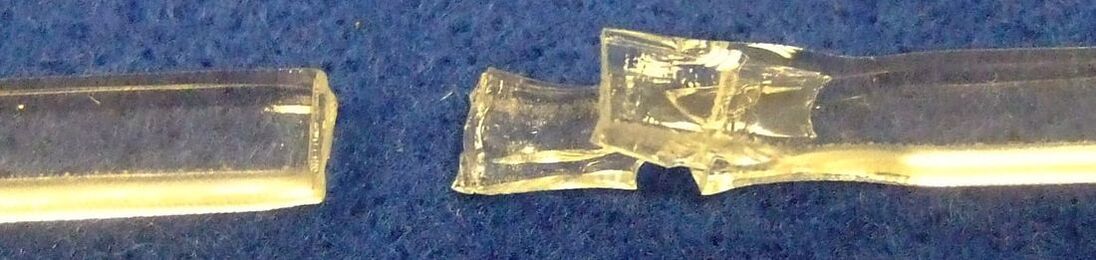

Water induced rapid hardening


​玻璃化转变温度

​玻璃化转变温度在食品保藏中的应用

​无定形稳定性 - 警惕吸湿性!
​对于可混溶的无定形混合物体系,其性质在很大程度上取决于各组分的性质,特别是各组分之间相互作用的程度,以及由此产生的混合物相对于各组分的自由体积变化。这又反映在混合物的玻璃化转变温度上,​可混溶的无定形混合物的 Tgmix 值通常介于各组分的 Tg 值之间。通常,我们会选择具有较高Tg的辅料来制备无定形固体分散体,以提高无定形混合物的整体Tg,增强其物理稳定性。
然而,无定形固体缺乏长程有序性,比相应的结晶形态具有更大的自由体积、更低的密度和更大的分子迁移率。与可混溶液体一样,自由体积的增加,会导致固体与水分子具有一定程度的 “混溶性”,从而使水分子渗透或 “吸收 ”到无定形固体的主体结构中。在这种情况下,与晶体相比,无定形在特定相对湿度下吸收的水蒸气总量将大大提高,尤其是对于极性分子。

对于PVP等极性更强的无定形固体,其在相近的相对湿度值下,吸水率会更高,对 Tg 的影响也会更大。如下图,干燥的PVP的Tg值为448K,而在 75% 相对湿度条件下,PVP 大约吸收了 25% w/w 的水,其 Tg 值为 300 K,即降低了 118 K,这意味着分子迁移率大大增加,塑化效果显著。
​PVP(Polyvinylpyrrolidone,聚乙烯吡咯烷酮)是一种水溶性高分子化合物,因其独特的化学和物理性质,被广泛应用于多个领域。
​
  • 物理性质
    • 外观:白色或淡黄色粉末或透明液体(取决于分子量和状态)。
    • 可溶性:易溶于水、醇类(如乙醇、异丙醇)、氯仿等极性溶剂。
    • 稳定性:在正常条件下对热、光、酸和碱较稳定。
  • 化学性质
    • 具有优良的亲水性,可在水溶液中形成透明、稳定的胶体。
    • 与许多化学物质(如碘、药物分子)具有良好的相容性,能形成复合物。
