Shape memory materials and technology

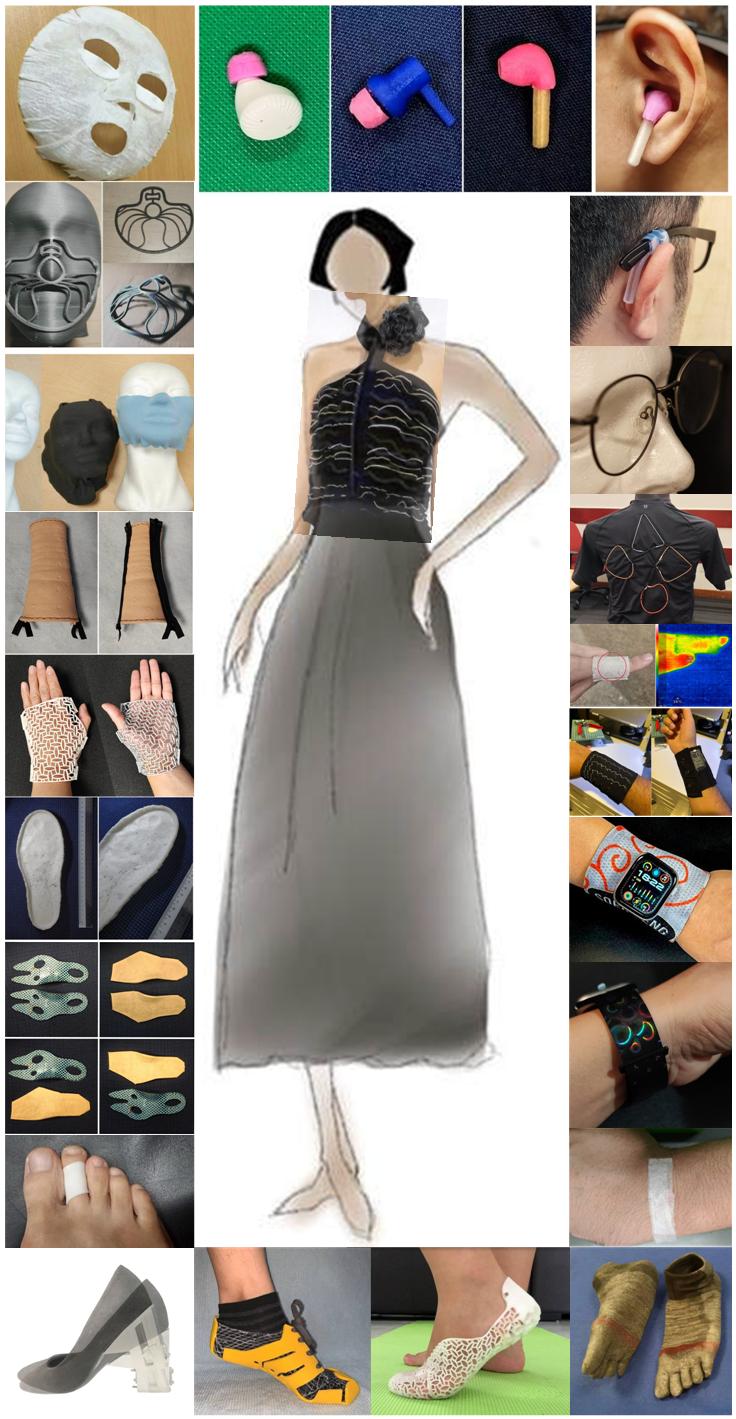

Wearable applications
Comparison of shape memory effect and shape change effect
|
Plastic bag
|
SMA (Nitinol)
|
Comparison of elastic sponge, memory foam and shape memory foam
Free energy

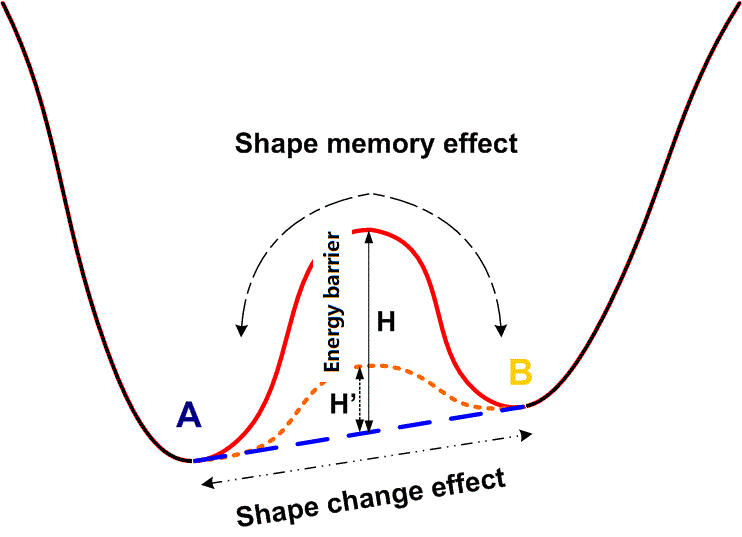

(different energy barrier between State A and State B) |
Elastic sponge and memory foam: shape change effect
Shape memory foam: shape memory effect Ref: Thermo/chemo-responsive shape memory effect in polymers: a sketch of working mechanisms, fundamentals and optimization, Journal of Polymer Research, Vol. 19, No. 9, 2012, 9952 Emma X BASF｜生活节奏不被定义，慢回弹将你还给自己。
|
Comparison of elastic, memory and shape memory insolesElastic insole and memory insole: shape change effect
Shape memory insole: shape memory effect |
|
Environmental temperature dependent:
|
|
Comparison of two elastic glasses frames:
|
|
Ref: Stimulus-responsive shape memory materials: a review, Materials and Design, 33, 577-640
An introduction to shape memory materials |
Online version
|
Shape memory materials |
Short version
|

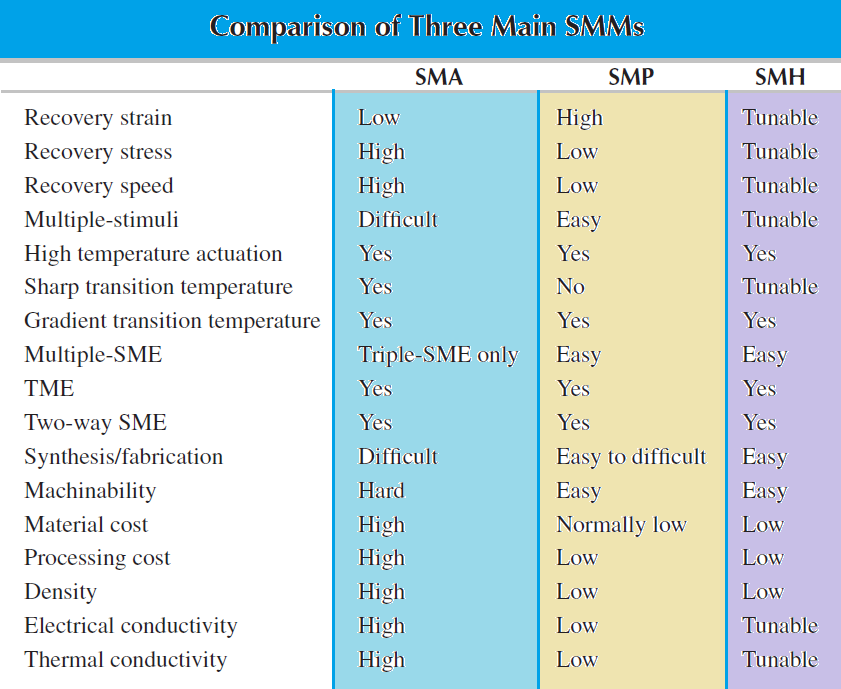

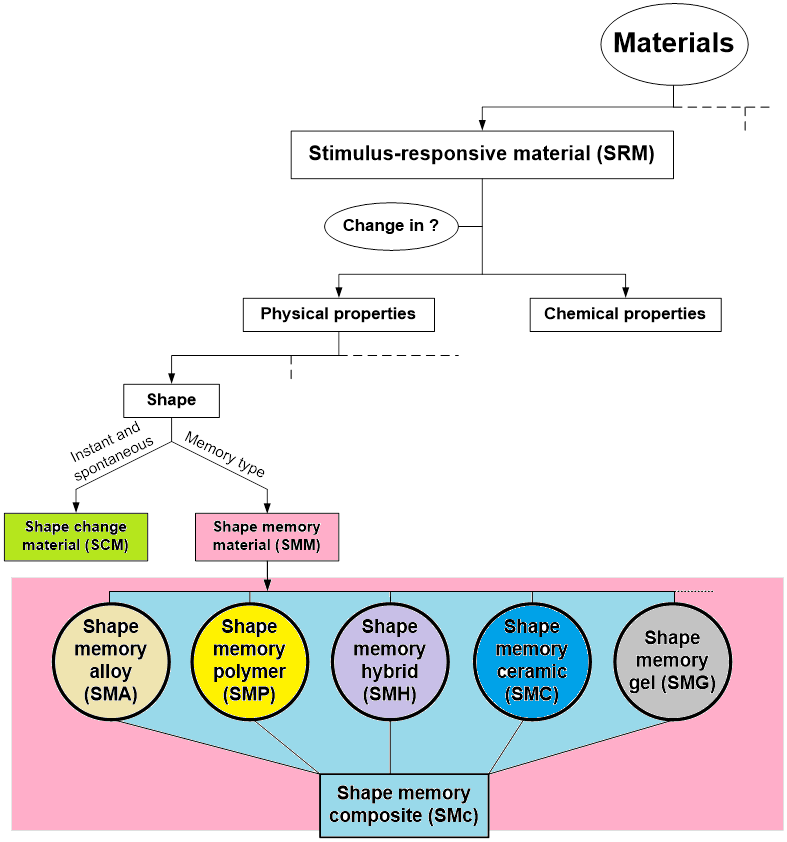

Stimulus-responsive shape memory materials: a review |
Long version (a summary of what I have done before 2012)
|
|
|

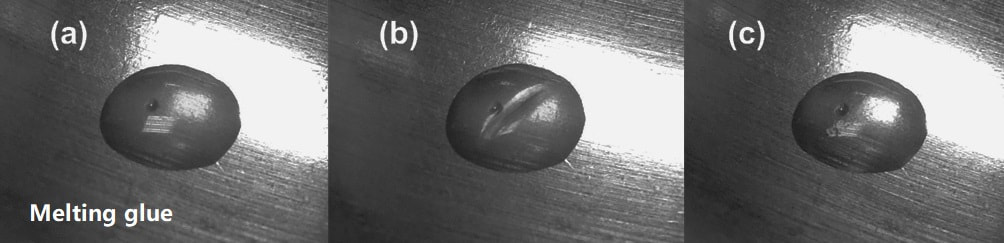

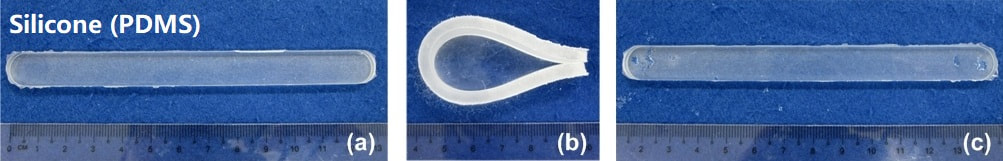

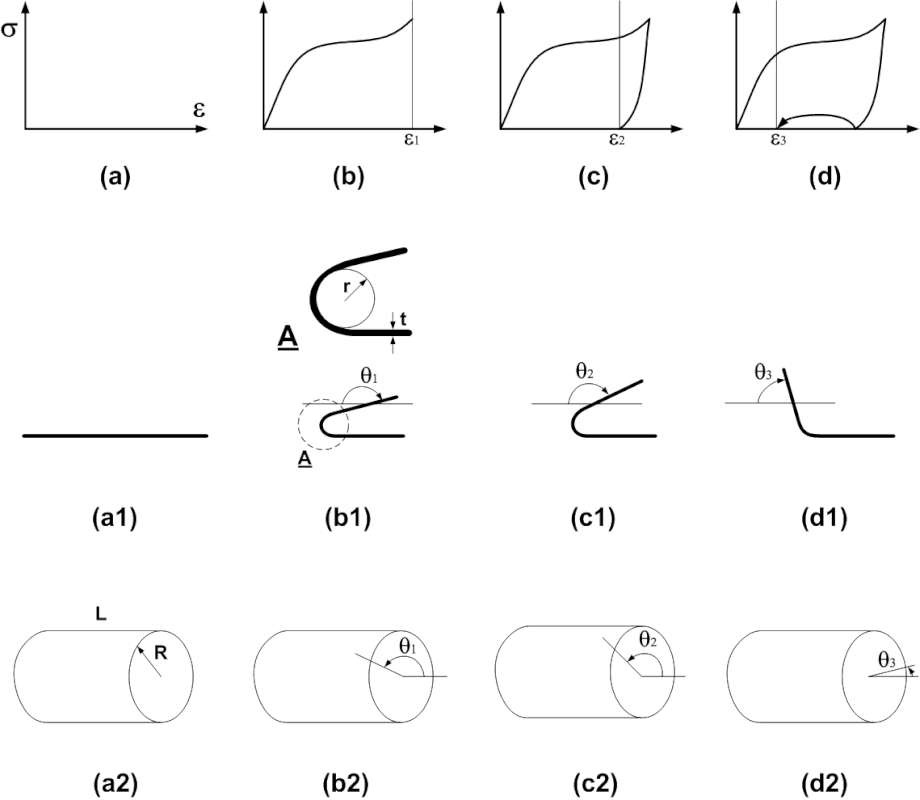

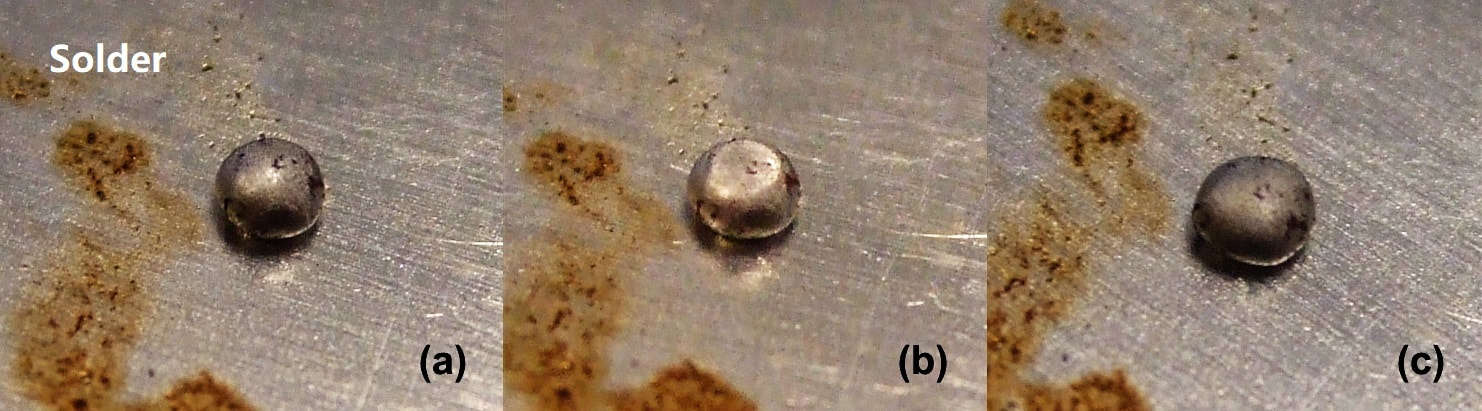

(a) Original shape; (b) programmed shape; (c) after shape recovery
|
|

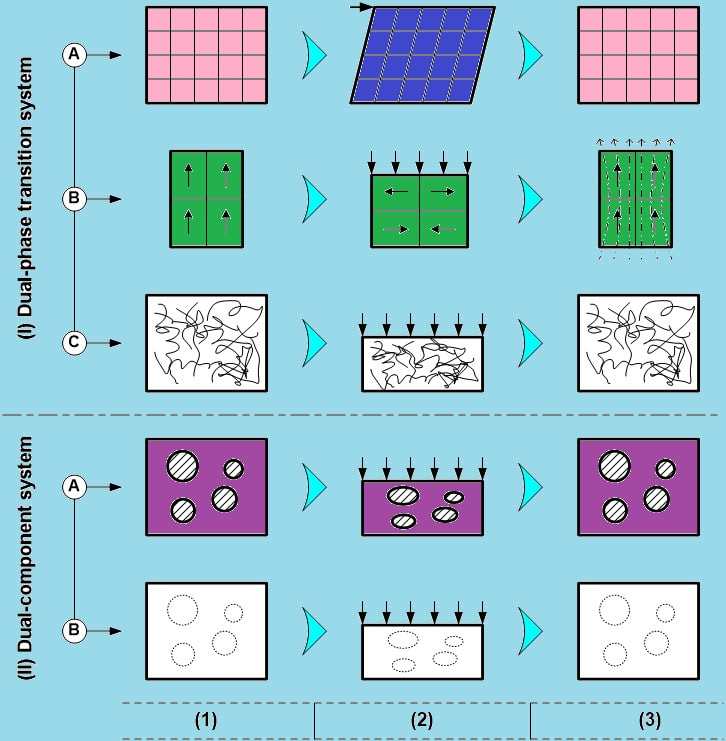

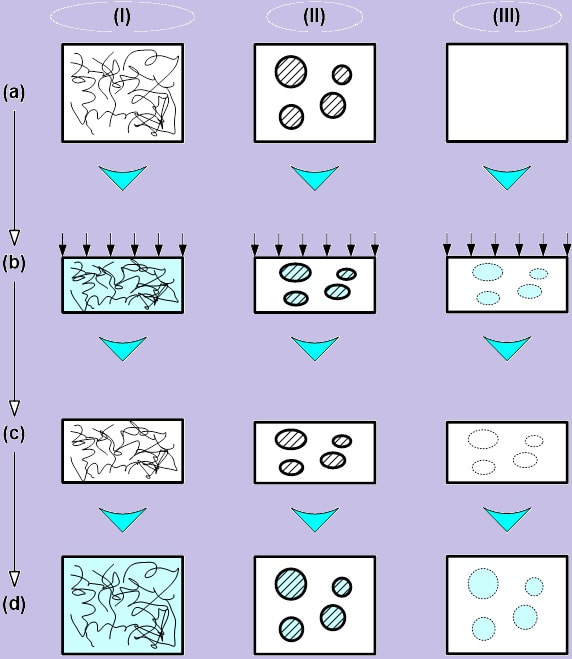

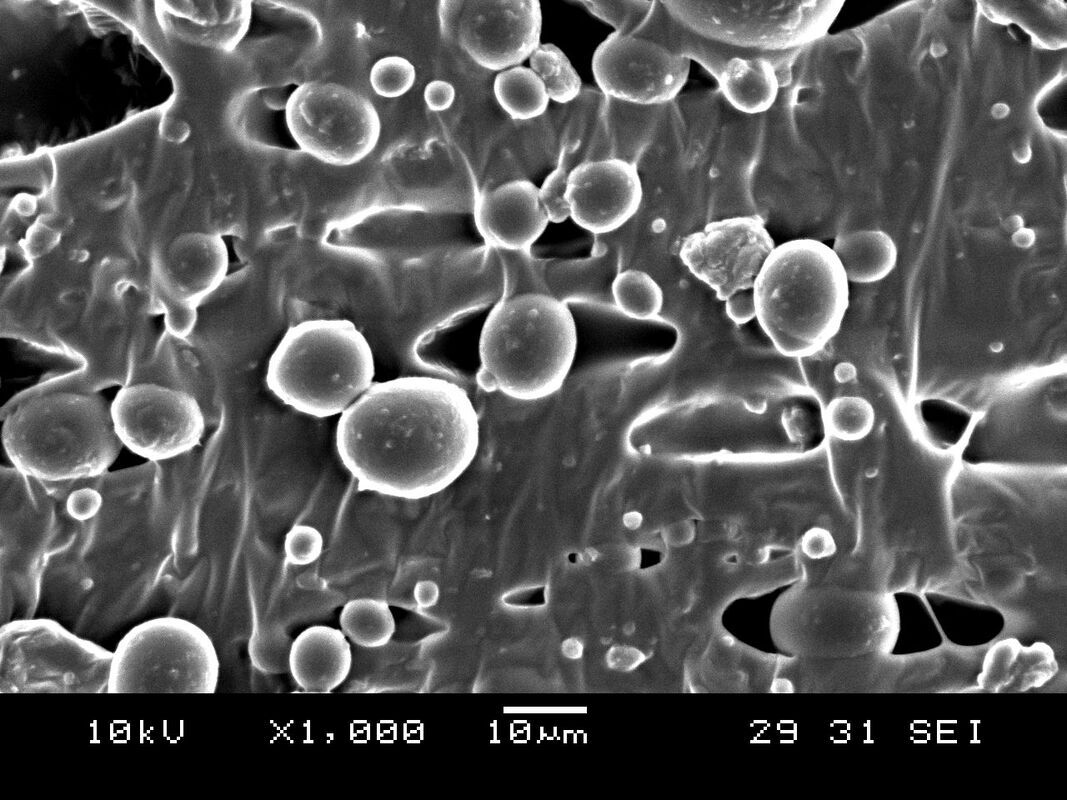

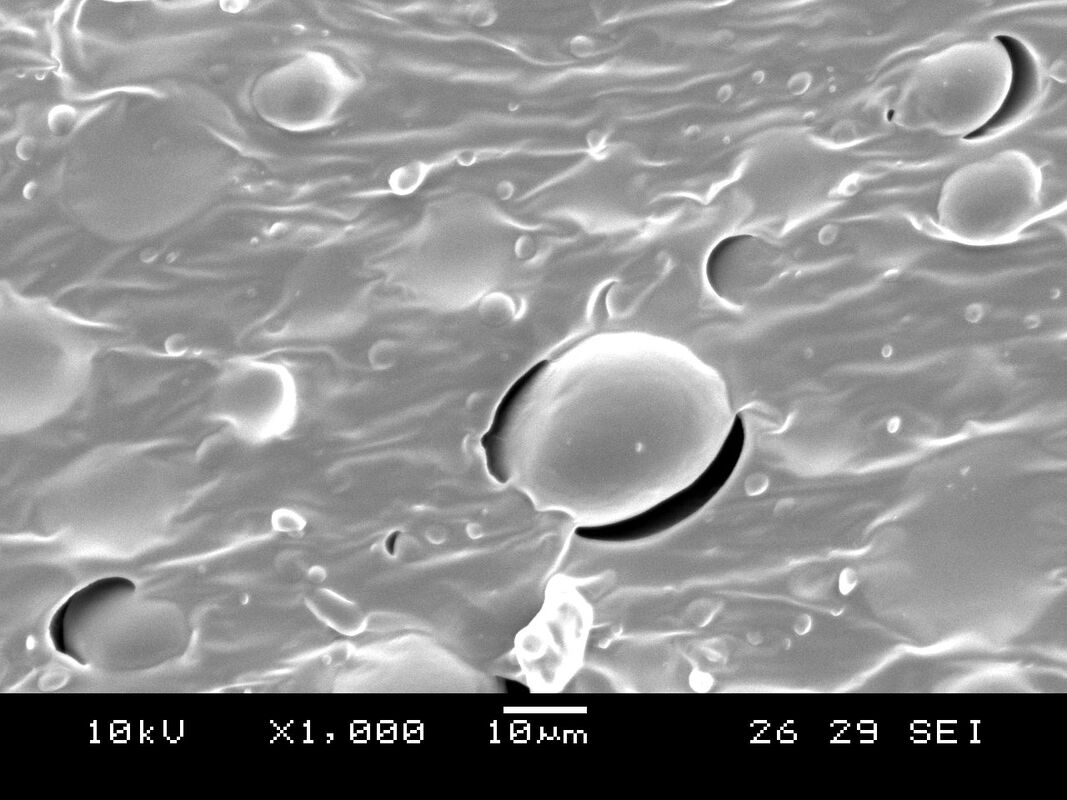

Basic working mechanisms for the SME in polymeric materials(I) Dual-state mechanism (DSM);
(II) Dual-component mechanism (DCM); (III) Partial-transition mechanism (PTM). (a) Original sample at room temperature; (b) Upon heating and compressing; (c) After cooling and constraint removal; (d) After heating for shape recovery. Thermo/chemo-responsive shape memory effect in polymers: a sketch of working mechanisms, fundamentals and optimization, Journal of Polymer Research, Vol. 19, No. 9, 2012, 9952
|
|
Ref：Chapter 2: Overview shape memory materials. In: Sokolowski WM, editor. Cold hibernated elastic memory structure: self-deployable technology and its applications. New York: CRC Press; 2019.

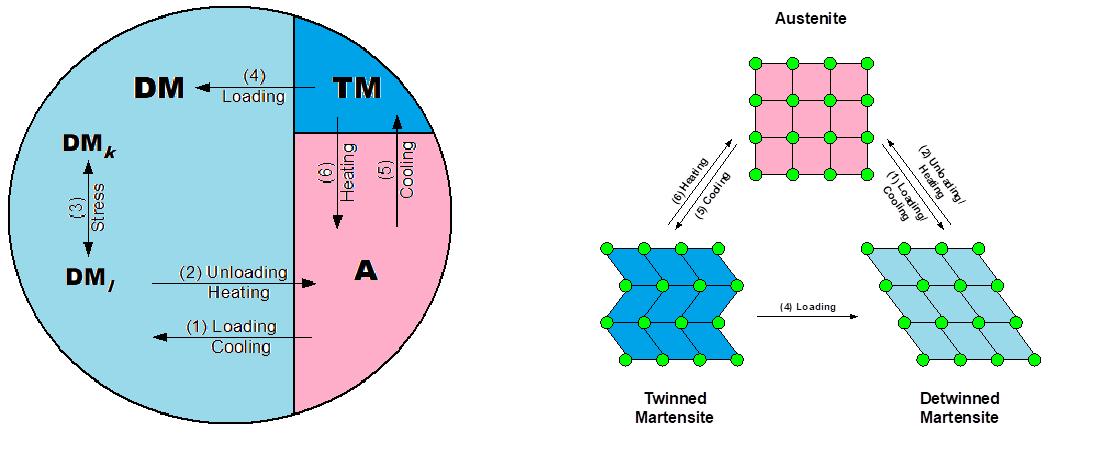

Three phases, six transformations (left) and change in lattice structure (right).
Ref: Thermomechanical behavior of shape memory alloys under non-proportional load. In: Proceedings of SPIE on transducing materials and devices; 2002 October 31. SPIE; 2002. p. 183–91

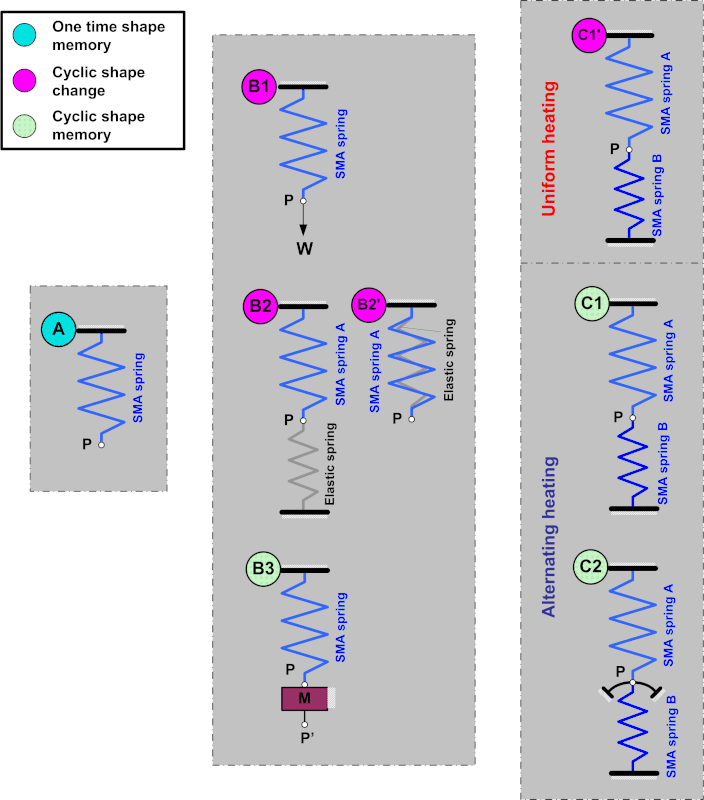

Ref: Shape change/memory actuators based on shape memory materials, Journal of Mechanical Science and Technology, 31(10), 2017, 4863-4873
|
|

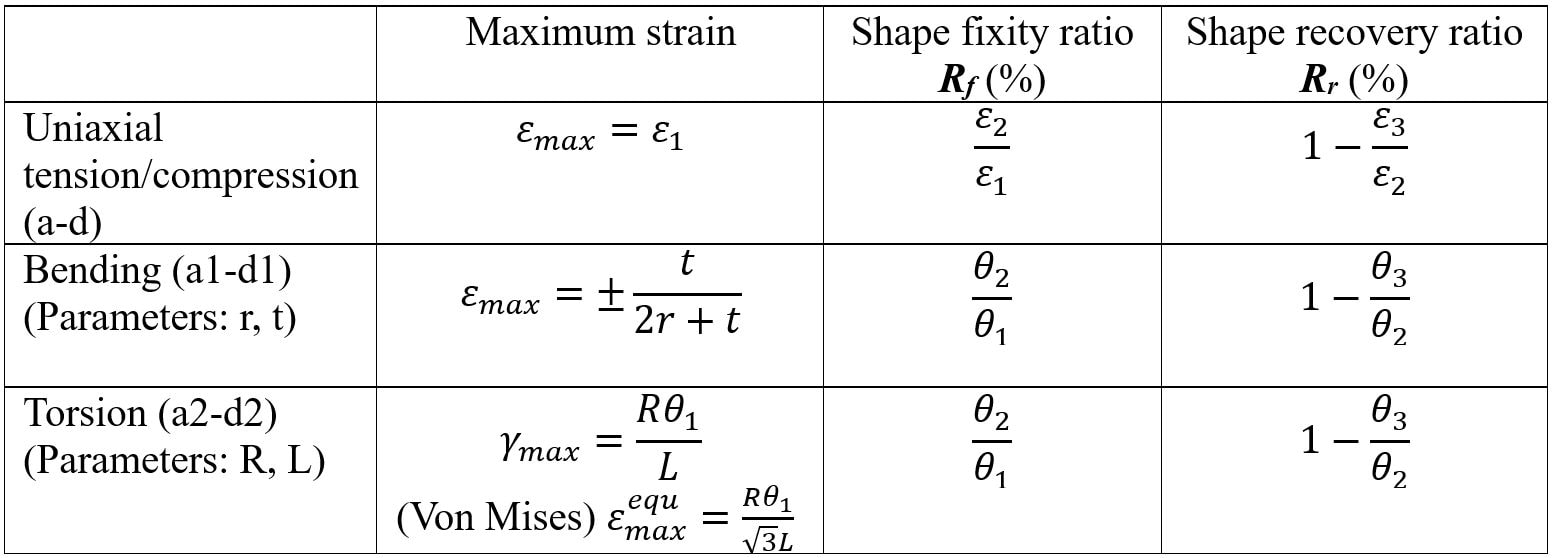

Characterization of shape memory performance |
Programming strain (shaft dimension and sample thickness) and programming temperature dependent.
|
|
Previous version
|
Uniaxial tension/compression mode |
Ideally, we should use uniaxial tension/compression mode.
|

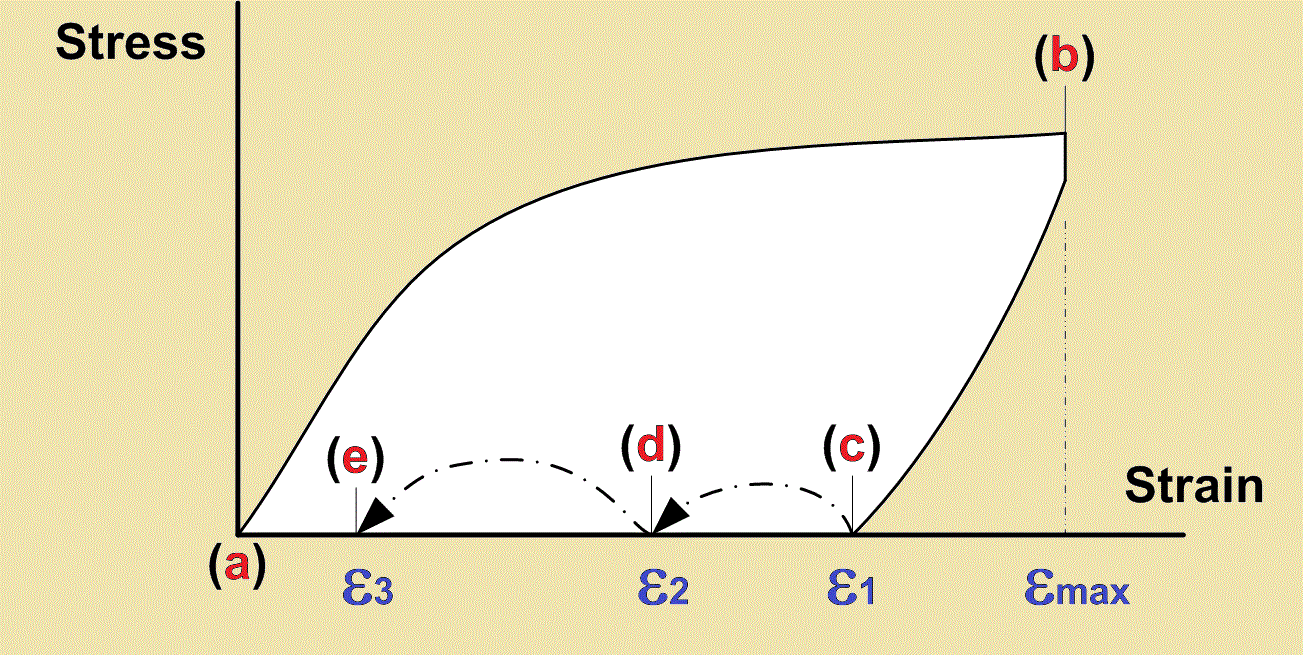

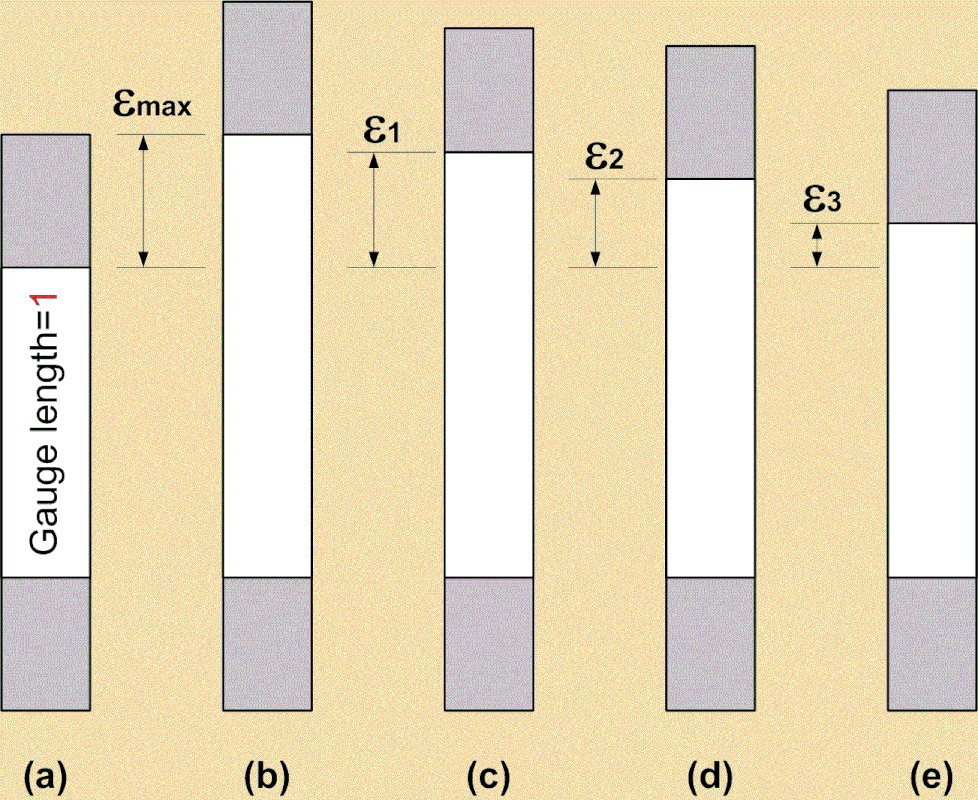

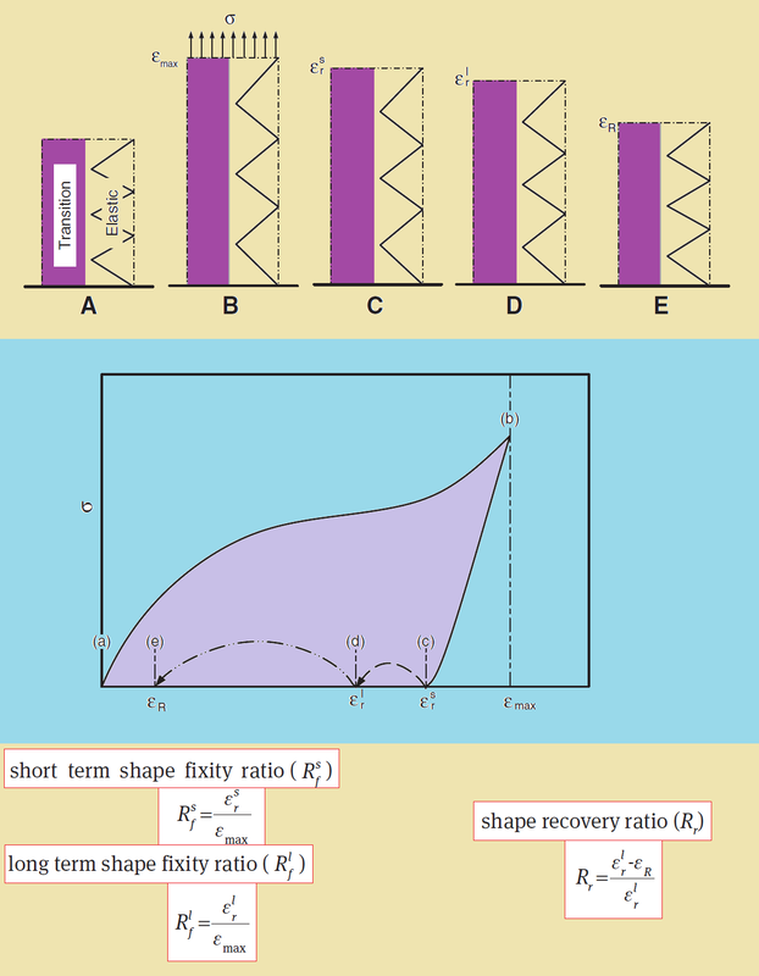

(a)-(c): programming (short term shape fixity ratio)
(c)-(d): creeping/relaxation (long term shape fixity ratio) (d)-(e): recovery (shape recovery ratio) |
|
Ref: Characterization of polymeric shape memory materials, Journal of Polymer Engineering, Vol. 37, 2017, 1-20

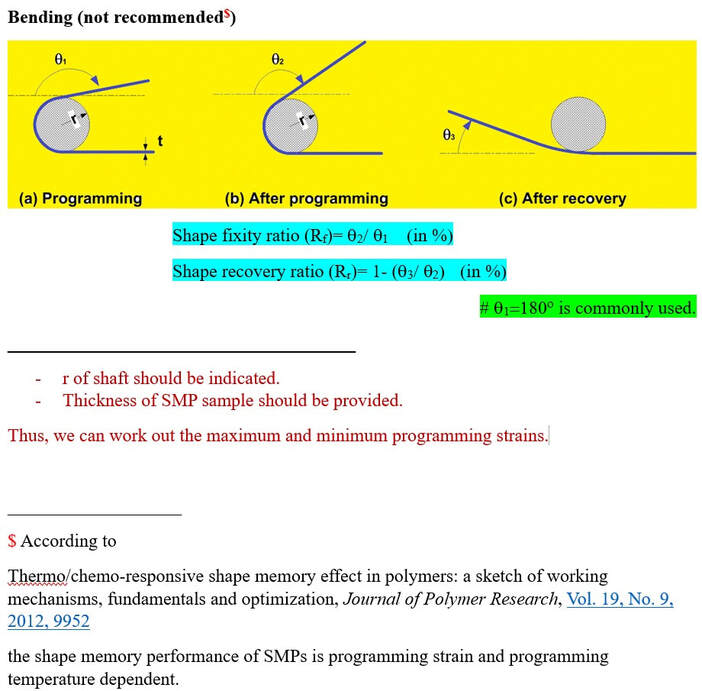

Bending mode |
(ignore creeping/relaxation)
|

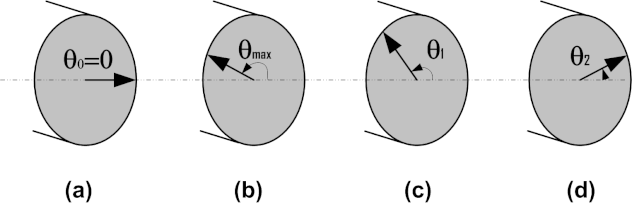

Twisting mode |
(ignore creeping/relaxation)
|
|
- To enable the shape memory effect in materials.
- To design a material with the required shape memory function. - To optimize the shape memory performance. |
