Shape memory effect vs. superelasticity:
|
|
Typical stress vs. strain curves of NiTi spring in uniaxial stretching at different temperaturesRef: Figure S4 in
Rubber-like shape memory polymeric materials with repeatable thermal-assisted healing function, Smart Materials and Structures, Vol. 21, 2012, 115010 |
|
|
(Intern) Jiho Sim
|
|
|
|
Simulation of laser annealing of NiTi film |
|
|
Surface morphology of NiTi thin film upon thermal cycling
|
|
|
|
|
|
|
|

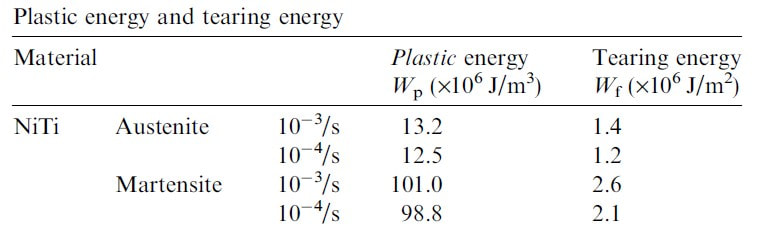

Plastic energy and tearing energy
(FYP) NG SB
|
|

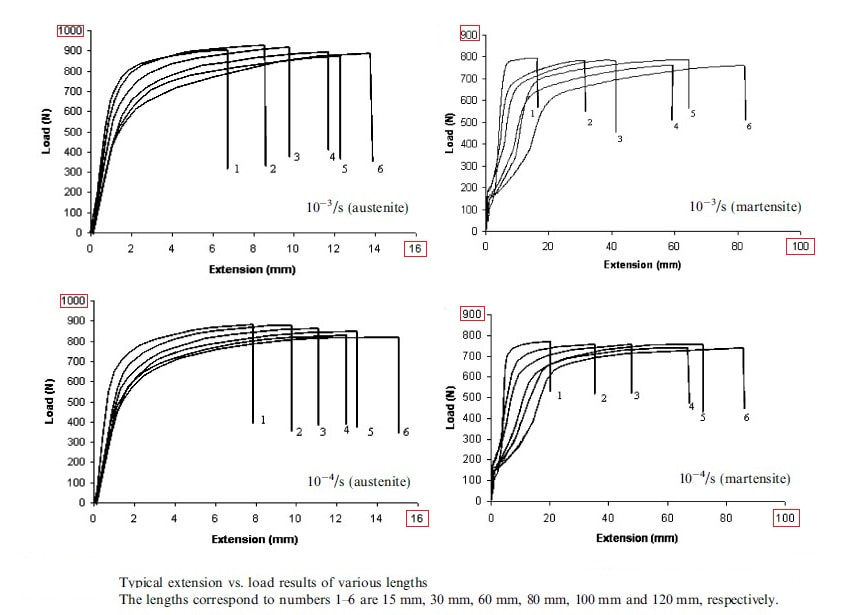

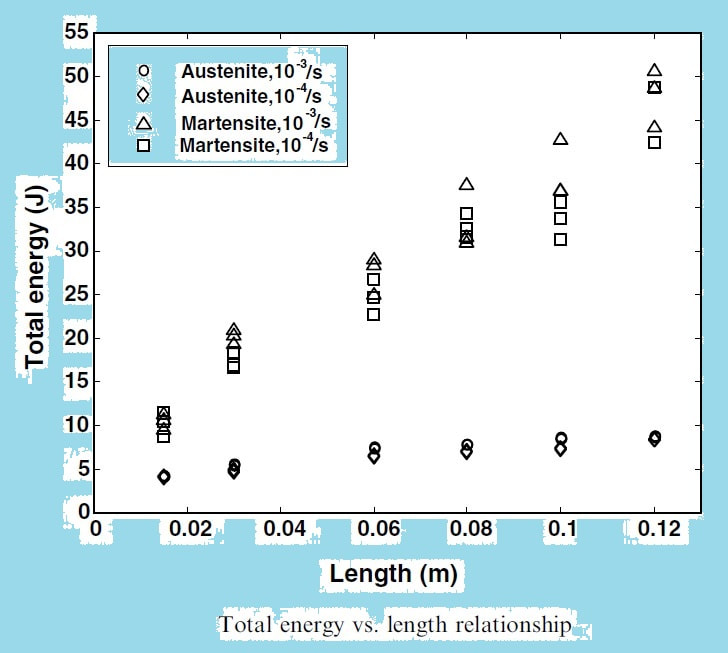

Plastic energy and tearing energy of a NiTi shape memory alloy wire, Materials and Design 29 (2008) 1066–1069
According to this study, depending on the requirement
of a particular application, if strength is of the prime concern, austenitic wire is preferable; while if higher plastic and tearing energies are more important, martensitic wire should be selected.

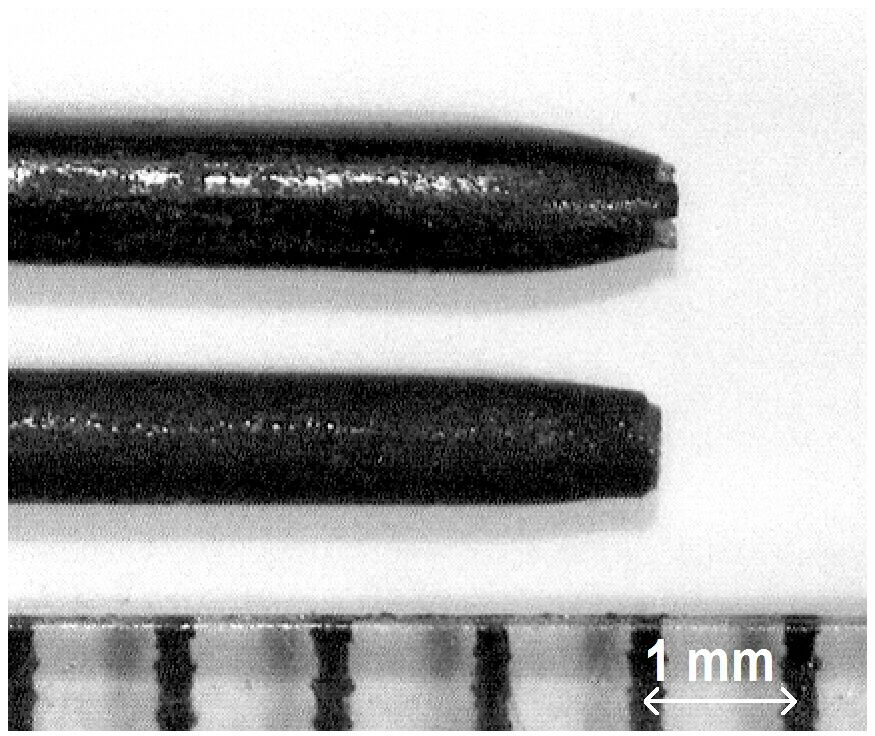

Fractured NiTi wires (top: austenite; bottom: martensite)
|
Buckling of shape memory alloy wire in constrained recovery upon thermal cycling |
(FYP) Melvern Lee
|
On the selection of shape memory alloys for actuators, Materials & Design, Vol. 23, 2002, pp11-19
Modifying superelastic Nitinol
Memory phenomenon in a lanthanum based bulk metallic glass, Journal of Alloys and Compounds, 672, 2016, 131-136
