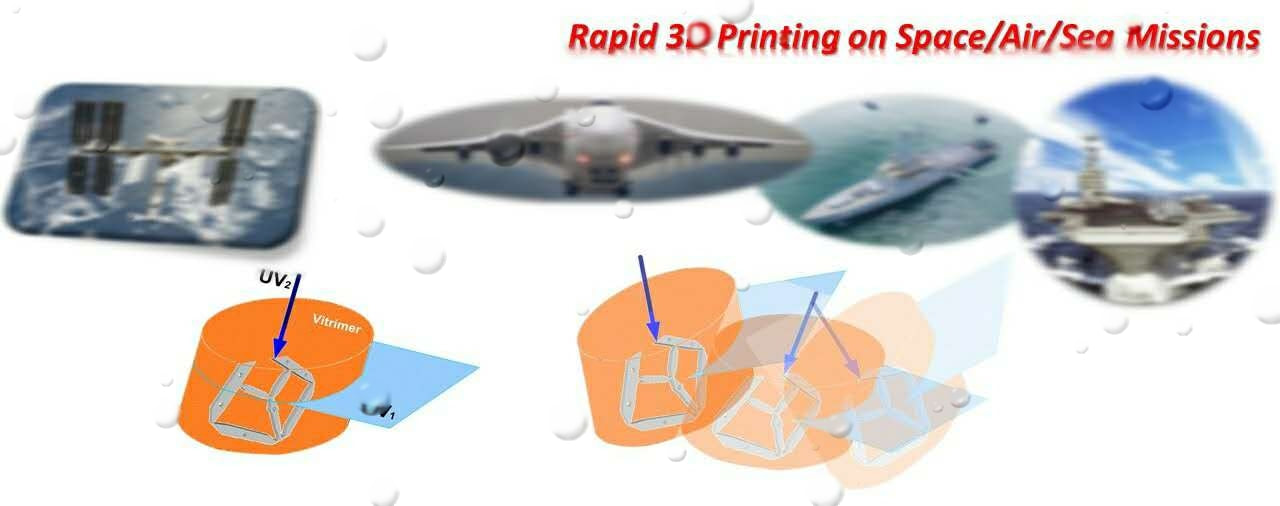

​​Rapid manufacturing anywhere, anytime
​| Singapore | Materials 2024

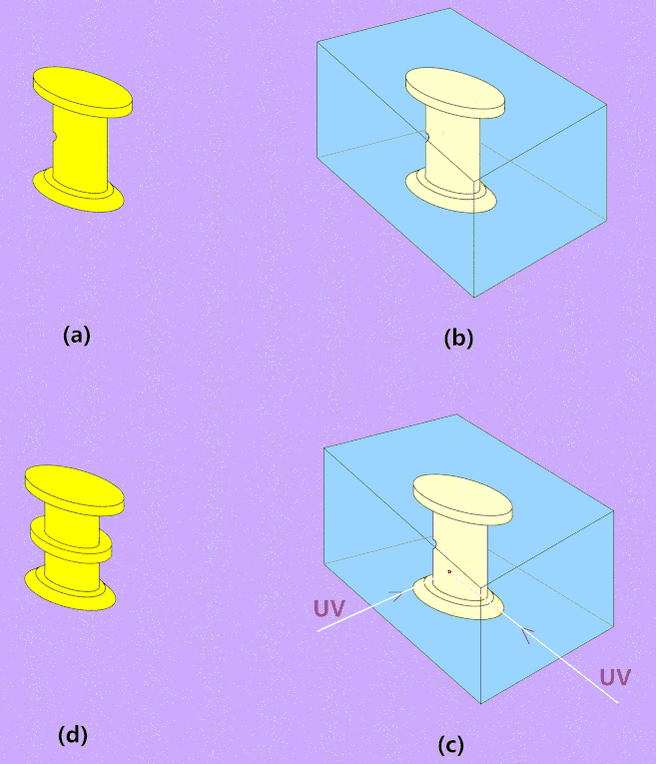

Remanufacturing

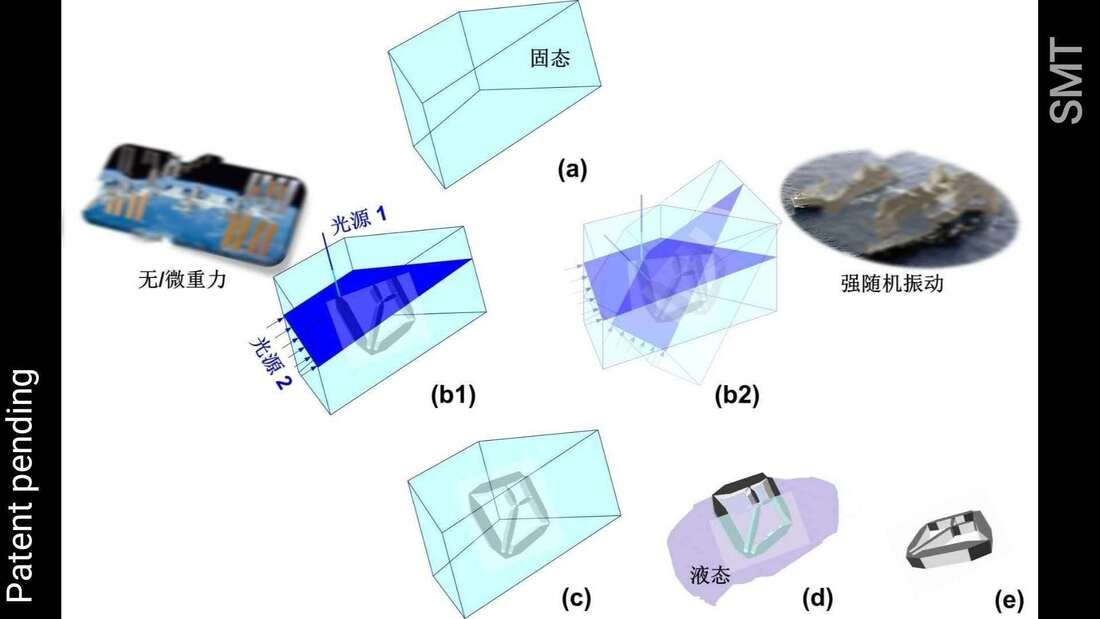

(a) Original shape
(b) Embedded inside solid "resin"
(c) Dual beam UV cross-linking
​(d) Final shape
Compared with other current 3D printing technologies, summarize the advantages of solid-state photo-crosslinking volume printing technology, including cost-effectiveness, application areas, etc.

Solid-state photo-crosslinking volume printing technology (SVP) presents distinct advantages over other current 3D printing technologies. Below is a summary of these advantages, particularly focusing on cost-effectiveness and application areas:

Advantages
1. Rapid Manufacturing
  • Advantage: SVP can complete the entire 3D structure within seconds to minutes, significantly reducing production time compared to layer-by-layer methods.
  • Application Areas: Ideal for scenarios requiring rapid prototyping and on-demand manufacturing, such as medical emergencies, research experiments, and quick product development.
2. High Dimensional Stability
  • Advantage: Solid-state resins remain stable and do not flow before curing, reducing deformation risk during the printing process.
  • Application Areas: Suitable for high-precision and stability-demanding applications like precision components, aerospace parts, and electronic components.
3. Reduced Material Waste
  • Advantage: Unused solid-state resin can be easily recycled and reused, minimizing material waste compared to liquid resins.
  • Application Areas: Ideal for resource-constrained environments, such as space missions and remote research stations.
4. Vibration and Environment Resistance
  • Advantage: Solid-state resins perform well under strong vibrations and microgravity, maintaining shape and form without environmental influence.
  • Application Areas: Suitable for aerospace, military, and extreme environmental manufacturing needs.
5. Simplified Post-processing
  • Advantage: Overall curing minimizes the need for support removal and layer smoothing, streamlining the post-processing steps.
  • Application Areas: Beneficial for applications requiring quick final products, such as custom medical devices, instant tools, and mold making.
6. Environmental Friendliness
  • Advantage: Solid-state resins generally have low volatility, reducing harmful gas emissions and creating a safer, more eco-friendly work environment.
  • Application Areas: Perfect for manufacturing sectors with high environmental standards, such as green manufacturing and eco-friendly product development.

Cost-effectiveness
Initial Investment
  • Advantage: Although the initial investment for SVP equipment might be higher, the high efficiency and reduced material waste can significantly lower long-term operational costs.
Operational Costs
  • Advantage: Lower material waste and simplified post-processing reduce material and labor costs, enhancing production efficiency.
Material Recycling
  • Advantage: The ability to recycle solid-state resin further reduces material costs, improving overall cost-effectiveness.

Application Areas
Medical and Biotechnology
  • Advantage: Rapid prototyping and high precision are ideal for custom medical devices, prosthetics, dental models, and more.
Aerospace
  • Advantage: High dimensional stability and vibration resistance make SVP suitable for manufacturing precision parts and using in microgravity environments.
Electronics and Precision Engineering
  • Advantage: Ideal for producing high-precision electronic components, MEMS (Micro-Electro-Mechanical Systems), and other intricate parts.
Research and Education
  • Advantage: Rapid prototyping and low operational costs are beneficial for creating models and equipment for scientific research and educational purposes.
Industrial Manufacturing
  • Advantage: Efficiency and eco-friendliness are suitable for quick mold creation, tool manufacturing, and small-batch production.
Conclusion

Solid-state photo-crosslinking volume printing technology (SVP) offers significant advantages in rapid manufacturing, high dimensional stability, reduced material waste, and environmental adaptability. These benefits make it highly suitable for various high-demand applications. Despite the potentially higher initial equipment costs, the high efficiency and low operational costs ensure excellent cost-effectiveness in the long run. As technology advances, SVP is likely to find broader applications across diverse fields.
与目前的其它3D打印技术相对比，总结固态下光交联的体打印技术的优势，包括性价比，应用领域等

ChatGPT固态下光交联的体打印技术（Solid-state Volumetric Photopolymerization Printing, SVP）相对于目前的其他3D打印技术有着独特的优势，尤其是在特定应用领域和成本效益方面。以下是对其优势的总结：
​
优势
  1. 快速制造
    • 优势：体打印技术能够在几秒钟到几分钟内完成整个3D结构的打印，相比于逐层构建的传统3D打印方法，时间显著减少。
    • 应用领域：适用于需要快速原型制作和即时制造的场景，如医疗急救、科研实验、快速产品开发等。
  2. 高尺寸稳定性
    • 优势：固态树脂在未固化时不会流动，保持原始形状和尺寸稳定性，减少了打印过程中的变形风险。
    • 应用领域：适用于高精度和高稳定性要求的应用，如精密零件制造、航空航天部件、电子元件等。
  3. 低材料浪费
    • 优势：固态树脂在未使用时可以直接回收和再利用，减少了材料浪费，相对于液态树脂更环保。
    • 应用领域：适用于资源有限的环境，如太空探索、远程科研基地等。
  4. 抗振性和环境适应性
    • 优势：固态树脂在强振动和微重力环境下表现出色，不会因环境变化而流动或变形。
    • 应用领域：适用于航空航天、军事和其他极端环境下的制造需求。
  5. 减少后处理步骤
    • 优势：由于整体固化，体打印技术减少了去除支撑结构和平滑层间接缝的后处理步骤，简化了加工过程。
    • 应用领域：适用于需要快速成品的制造过程，如定制医疗器械、即时工具和模具制作等。
  6. 环境友好
    • 优势：固态树脂通常挥发性低，减少了有害气体的释放，提供更安全和环保的工作环境。
    • 应用领域：适用于对环保要求高的制造业，如绿色制造、环保产品开发等。
性价比
  1. 初始投资
    • 优势：虽然固态光交联体打印技术的设备初始投资可能较高，但其高效率和低材料浪费可以在长期使用中显著降低运营成本。
  2. 运营成本
    • 优势：低材料浪费和简化的后处理步骤减少了材料和人力成本，提高了生产效率。
  3. 回收利用
    • 优势：固态树脂可以回收利用，进一步降低材料成本，提高性价比。
应用领域
  1. 医疗和生物技术
    • 优势：快速原型制作和高精度打印适用于定制医疗器械、假肢、牙科模型等。
  2. 航空航天
    • 优势：高尺寸稳定性和抗振性适用于制造精密部件和在微重力环境中的应用。
  3. 电子和精密工程
    • 优势：适用于制造高精度电子元件、微机电系统（MEMS）等。
  4. 科研与教育
    • 优势：快速成型和低成本运营适用于科研实验、教育教学中的模型制作和研究设备。
  5. 工业制造
    • 优势：高效率和环保特性适用于快速模具制作、工具制造和小批量生产。
结论
固态下光交联的体打印技术在快速制造、高尺寸稳定性、低材料浪费和环境适应性等方面具有显著优势，适用于多个高要求的应用领域。尽管初始设备投资较高，但其高效率和低运营成本使其在长期使用中具有很高的性价比。随着技术的不断进步，这种技术有望在更多领域得到广泛应用。

4o

​快速固态增材制造(Rapid additive manufacturing in solid state )202105

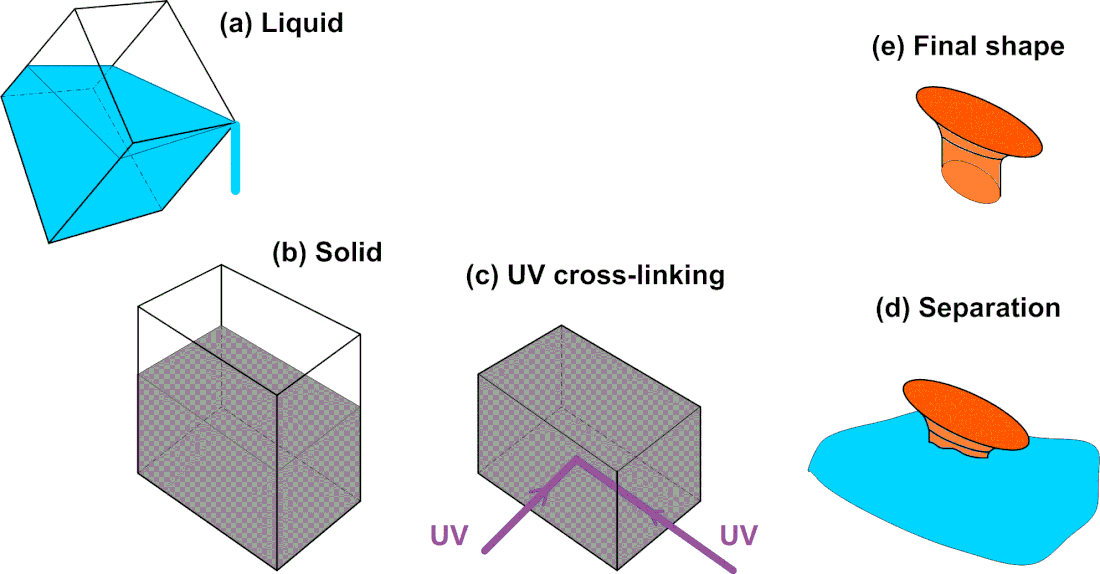

Illustration of working principle using a thermal gel
热敏胶演示工作原理

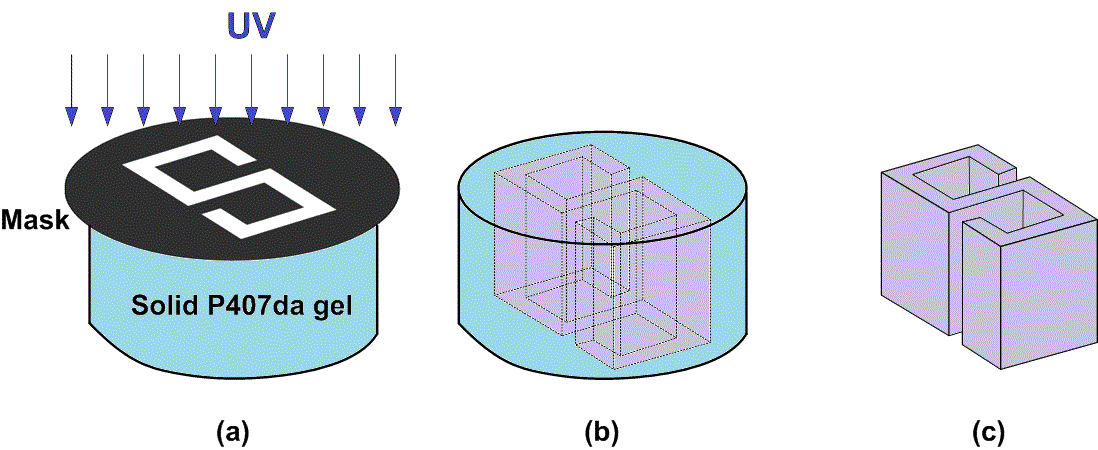

UV curing in solid state

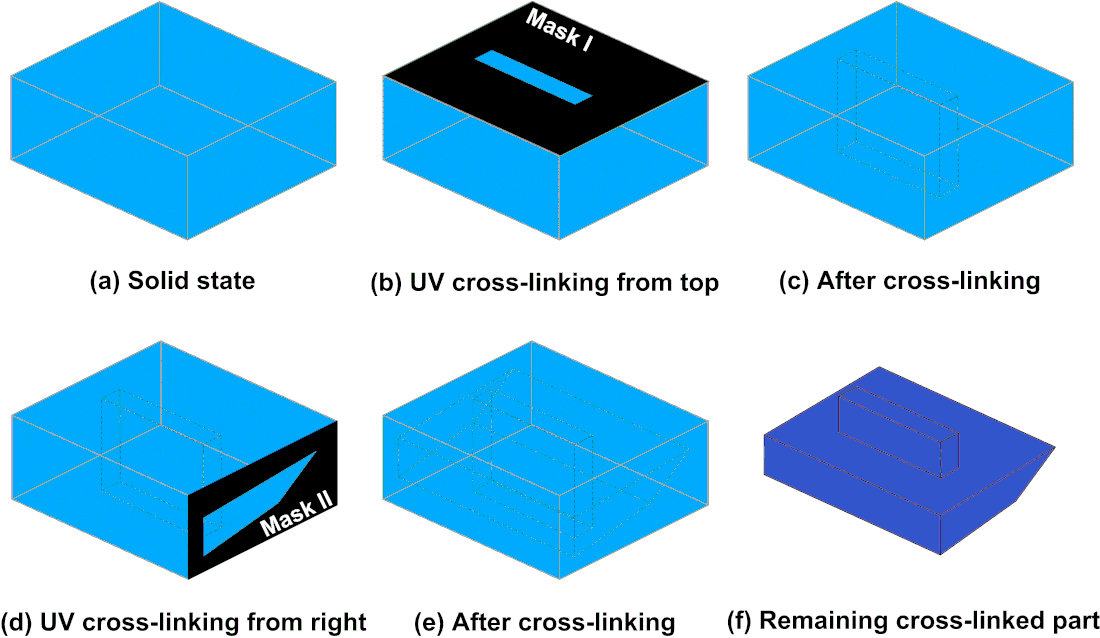

Dual-mask, twice cross-linking
​Rapid Volumatic additive manufacturing of cooling-responsive shape memory hydrogel in solid state via dual-mask cross-linking in solid state

Preliminary experimental result
by Faqrul Hasif Bin Abdul Nasir ​(FYP)
Before cross-linking, the solid gel is hard enough to support a few coins placed atop.

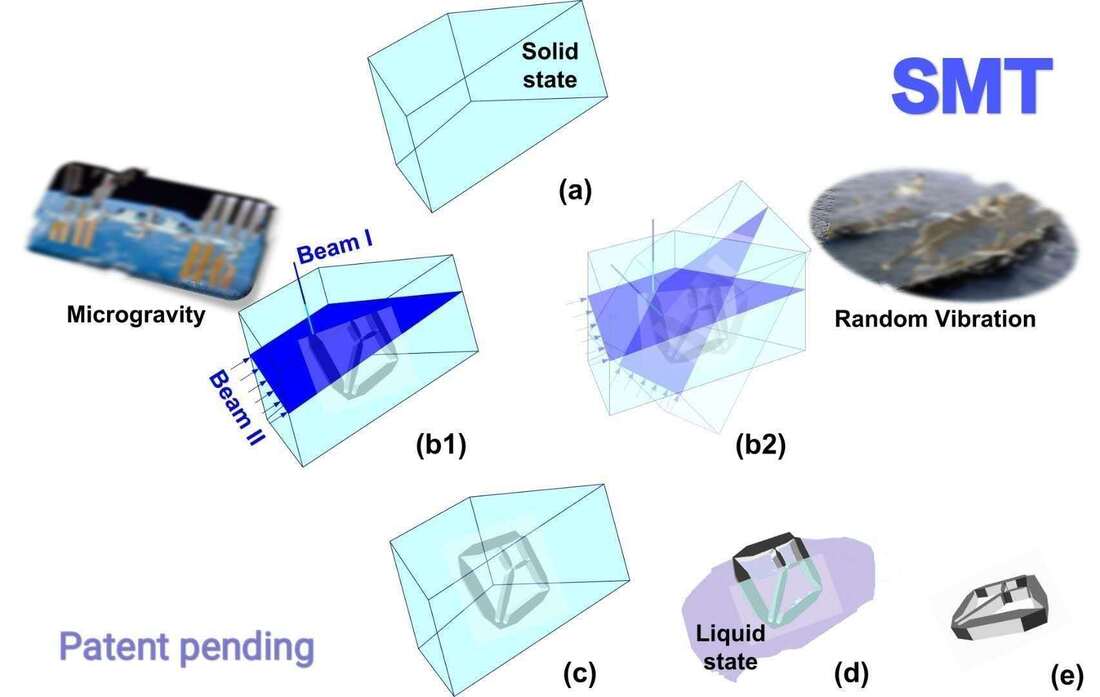

Dual-beam cross-linking

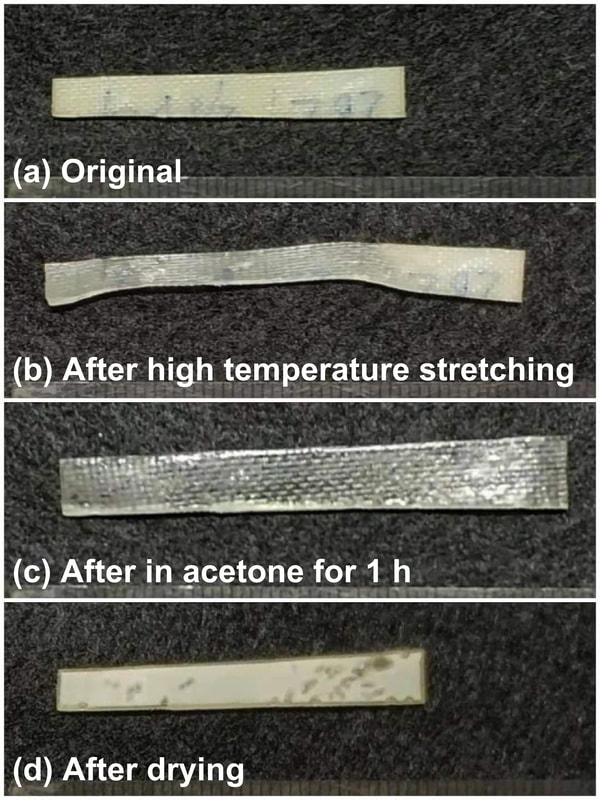

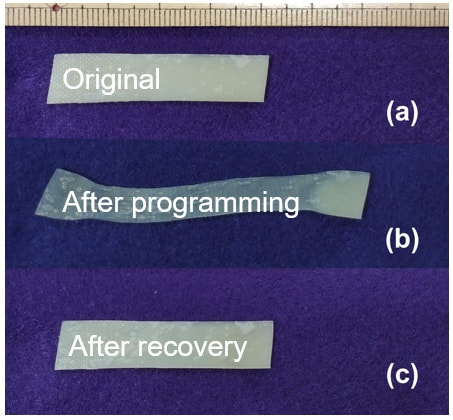

​Shape memory effect in cross-linked vitrimer
Chemo-responsive
Heating-responsive

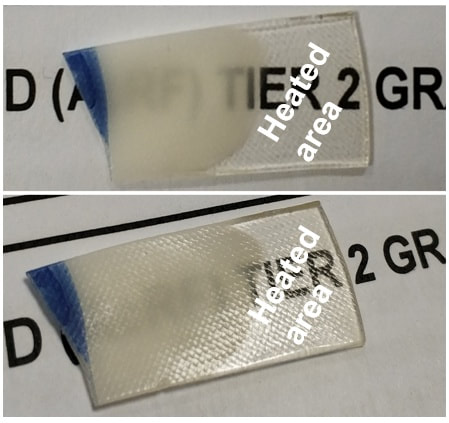

Upon heating to its melting temperature, the vitrimer becomes transparent, but still in solid state. Just right for volumetric additive manufacturing.
​Demonstration of UV cross-linking in solid state at room temperature of Vitrimer
by Dr HM Chen etc (Sichuan Normal University, PRC​)
​
Room-Temperature Solid-State UV Cross-Linkable Vitrimer-like Polymers for Additive Manufacturing. Polymers 2022, 14, 2203
Patents pending
